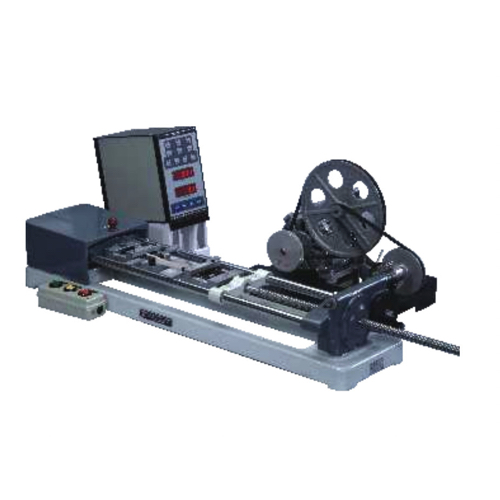

Kudale TM-ER1 Electronic Tensometer (20KN)

1. Mechanical frame

Capacity: 20KN max

Dimensions: H230 x W235 x L965mm (approx)

Weight: 18kg (Appprox)

2. Motor drive unit (optional)

Specifications: Motor: 3/4 HP, 230V, single phase, 1440 rpm AC motor

Speed variation: A set of 15 nos. Of pulley. For every speed, pulley to be replaced and stand to be adjusted accordingly ( 0.2-500mm/min)

3. Load measurement: 20KN max with interchangeable load cells

Load cells available: 0.2KN, 2KN, 20KN

Measuring unit: Newton, kg

4. Displacement: optical encoder as sensor

Measurement facility: 0-500mm

5.

Least count & load accuracy: L.C +0.05% of load cell, Accuracy 1%
