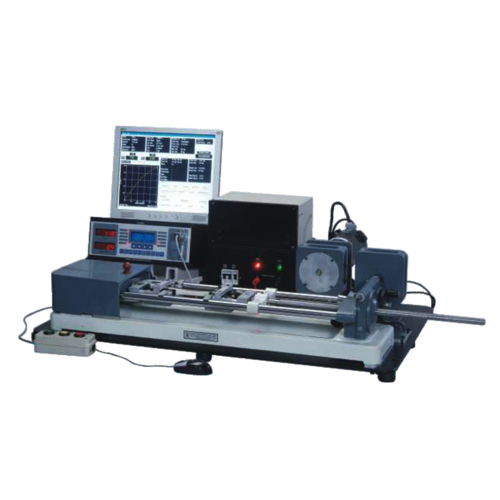

Kudale PC-2000 Electronic Tensometer (20KN)

1, Mechanical frame

Capacity: 20KN max

Dimensions: H300 x W700 x L1050mm (approx)

Weight: 60kg (Appprox)

2, Motor drive unit (Essential)

Specifications: Motor: permanent magnet DC servo, 3.6 V, 4.8A, 1600 rpm, 0.16KW

Speed variation: Servo drive, speed variation through timer belt & pulley arrangement computer control system. (0.2-500mm/min)

3, Load measurement: 20KN max with interchangeable load cells

Load cells available: 0.2KN, 2KN, 5KN, 10KN, 20KN

Measuring unit: Newton, kg

4, Displacement: optical encoder as sensor

Measurement facility: 0-500mm

5,Least count & load accuracy: L.C +0.05% of load cell, Accuracy 1%
