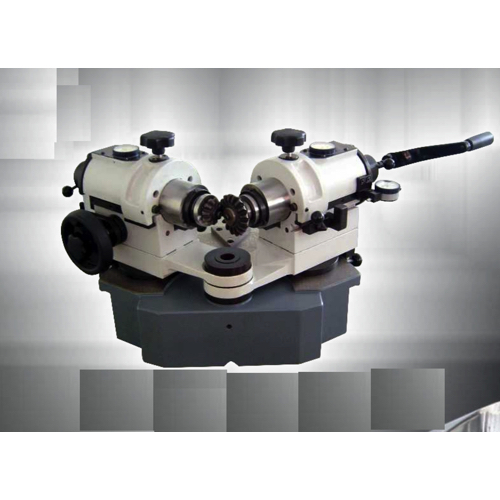

Kudale KIPL - 300 Motorized Bevel Gear Tester (300 mm)
ManufacturerKudale(View more products from this manufacturer)
ModelKIPL - 300
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max Dia of bevel gear: 300 mm
Morse Taper: 4
Cylindrical bore: 30 mm
Angle adjustment of axes 50°-140°
Max Assembly distance for bevel gear 220 mm.
Min Assembly distance for bevel gear 150 mm
Base (L x W x H) 770 x 550 x 180 mm (Approx.)
Required area 1080 x 590 mm (Approx.), Height 550 (Approx)
Weight with standard accessories 375 kg (Approx.)
Standard Package 500 kg (Approx.)
Sea Fright Package 520 kg (Approx.)
