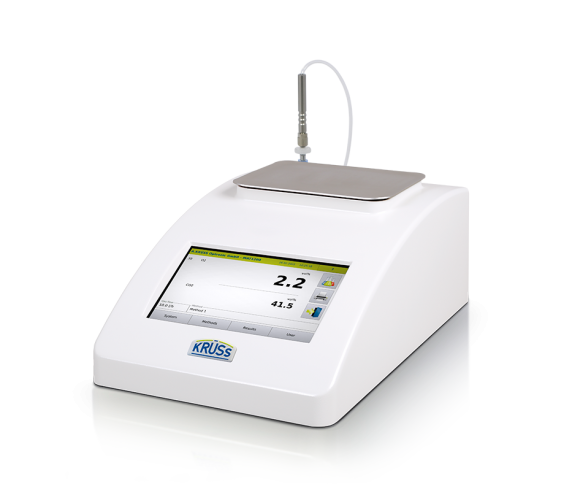

KRUSS MAT1500 Gas analyser for O2 und CO2 Concentration (O2: 0 – 100 vol%; CO2: 0 – 100 vol%)

Main Specifications:

Scales: Oxygen; Carbon dioxidel; Nitrogen; Any number of user-defined scales

Oxygen (O2)

Measurement Range 0–100 vol%

Accuracy

±0.001 vol% (< 1 vol%)

±0.01 vol% (< 6 vol%)

±0.1 vol% (< 35 vol%)

±0.4 vol% (> 35 vol%)

Resolution: 0.001 vol%

Carbon Dioxide(Co2):

Measurement Range: 0–100 vol%

Accuracy: ±0.5 vol%

Resolution: 0.1 Vol.-%

Nitrogen (N2):

Arithmetic Determination: Residual content of the gas mixture

O2-Sensor:

Type: Zirconium dioxide sensor ((ZrO2)

Measurement Principle: Potentiometric measurement

Service Life: Unlimited

Cross-Sensitivity: Cross-sensitive toward inflammable gases

Drift: Drift-free

Co2-Sensor:

Type: Two-channel NDIR sensor

Measurement Principle: Infrared spectroscopy

Service Life: Unlimited

Cross-Sensitivity: Not affected by moisture

Drift: Low drift < 1 %/month
