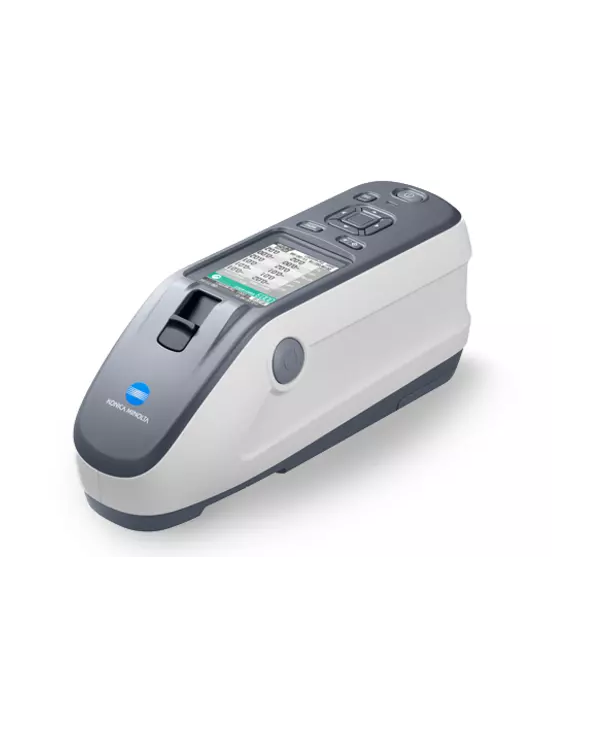

KONICA MINOLTA CM-23d Portable Spectrophotometer (400 nm ~ 700 nm, Ø 54 mm, d:8°)

 Illumination / Viewing system: d:8° (diffuse illumination, 8-degree viewing ), equipped with simultaneous measurement of SCI (di:8° specular component included) / SCE (de:8° specular component excluded) Conforms to (complies to DIN5033-7, JIS Z 8722c, ISO7724/1, CIE No.15)

Sphere Size: Ø 54 mm

Light-receiving element: Silicon photodiode array (dual 32 elements)

Spectral separation device: Planar Diffraction Grating

Wavelength range: 400 nm to 700 nm

Wavelength pitch: 10 nm

Half bandwidth: Approx. 10 nm

Reflectance range: 0 to 175%, resolution: 0.01%

Light source: Pulsed Xenon lamp (with UV cut)

Measurement time: ~ 0.7 seconds (SCI or SCE)

Minimum measurement interval: ~ 1.5 seconds (SCI or SCE)

Measurement/illumination area: MAV : Ø 8 mm / Ø 12 mm

Repeatability: Standard deviation within ΔE*ab 0.08 (Measurement conditions: white calibration plate measured 30 times at 5-second intervals after white calibration)

Inter instrument agreement: WithinΔE*ab 0.4 (MAV/SCI) Average for 12BCRA Series II color tiles compared to values measured with master body at 23°C.

Interface: USB 2.0 (Bluetooth™ optional)

Observer condition: CIE: 2° and 10° colorimetric standard observer

Illuminant condition: CIE: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65 (simultaneous evaluation is possible using two light sources)

Display data: Colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor

Color space / colorimetric data: L*a*b*, L*C*h, CMC(1:1), CMC(2:1), CIE94, CIE00, Yxy, XYZ (and color difference in these spaces); Munsell (C), MI, WI (ASTM E313-73), YI (ASTM D1925), Opacity,

Data memory: 1000 targets + 1700 samples

Power source: Dedicated lithium-ion battery (removable), USB bus power (with lithium-ion battery installed), Dedicated AC adapter (with lithium-ion battery installed)

Dimensions (W × H × D) [mm]: 81 × 93 × 229

Weight [g]: ~620

Operating temperature / humidity range (*1): 5 – 40°C, relative humidity 80% or less (at 35°C) with no condensation

Storage temperature/humidity range: 0 – 45°C, relative humidity 80% or (at 35°C) with no condensation

Standard accessories: White and Zero calibration box, Target mask Ø 8 mm, USB cable, USB-AC-Adapter, Li-Ion Battery pack, Wrist-strap

Optional accessories: Hard case, Bluetooth™ module, SpectraMagic™NX (software), SpectraMagic™NX2 (software), positioning tool

Display languages: English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Chinese (Simplified), Japanese
