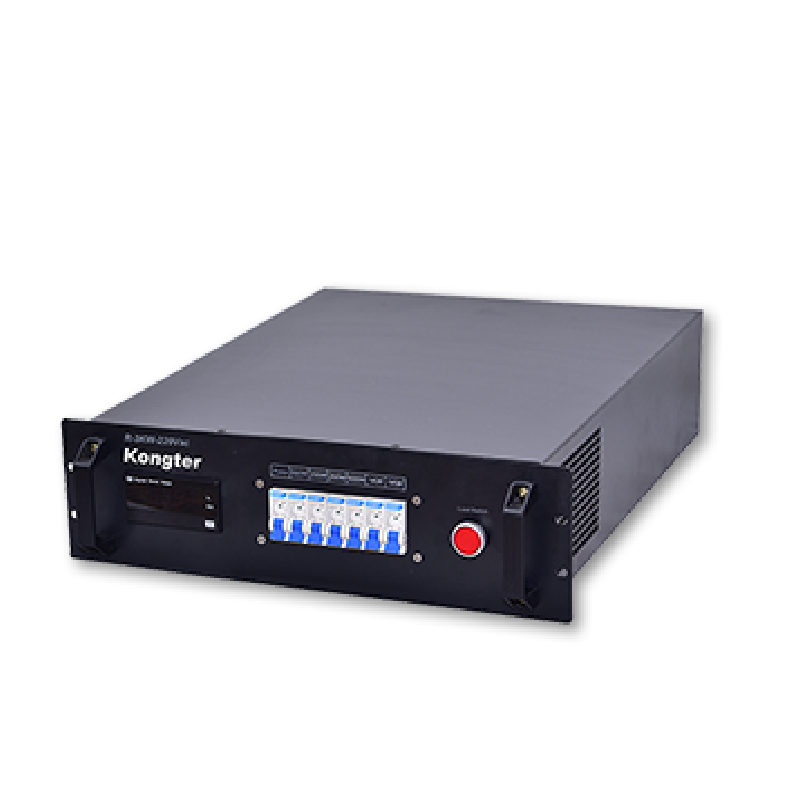

Kongter RM-6kW-AC240V Load Bank (6kW, AC240V)

Load Element: Alloy resistors

Load Voltage: AC240V single phase 50Hz

Load Power: 6KW@AC240V

Load Steps: 0.5, 0.5, 1, 2, 2 (0.5KW to 6KW adjustable)

Power Factor: PF=1

Load Accuracy: ±5%

Two Control Modes:

LOCAL: Manual control by push buttons

REMOTE: ONE PC software remote control for all 22 sets of load bank

Wire Connections: 3 sets load cable of C19 to C20 for loading

Insulation Class: F

Protection Level: IP20 (for indoor use）

Cooling Mode: Force-air cooling and air flow adjustable: cold air front inlet & hot air back outlet

Work Mode: Continuous work

Protection: Overheating protection

Dimension: 6U, 19’’ Standard Rack

Ambient Temperature: -10℃～+50℃

Mobility: Front handles

Humidity: ≤95%

Altitude: ≤2500 meters
