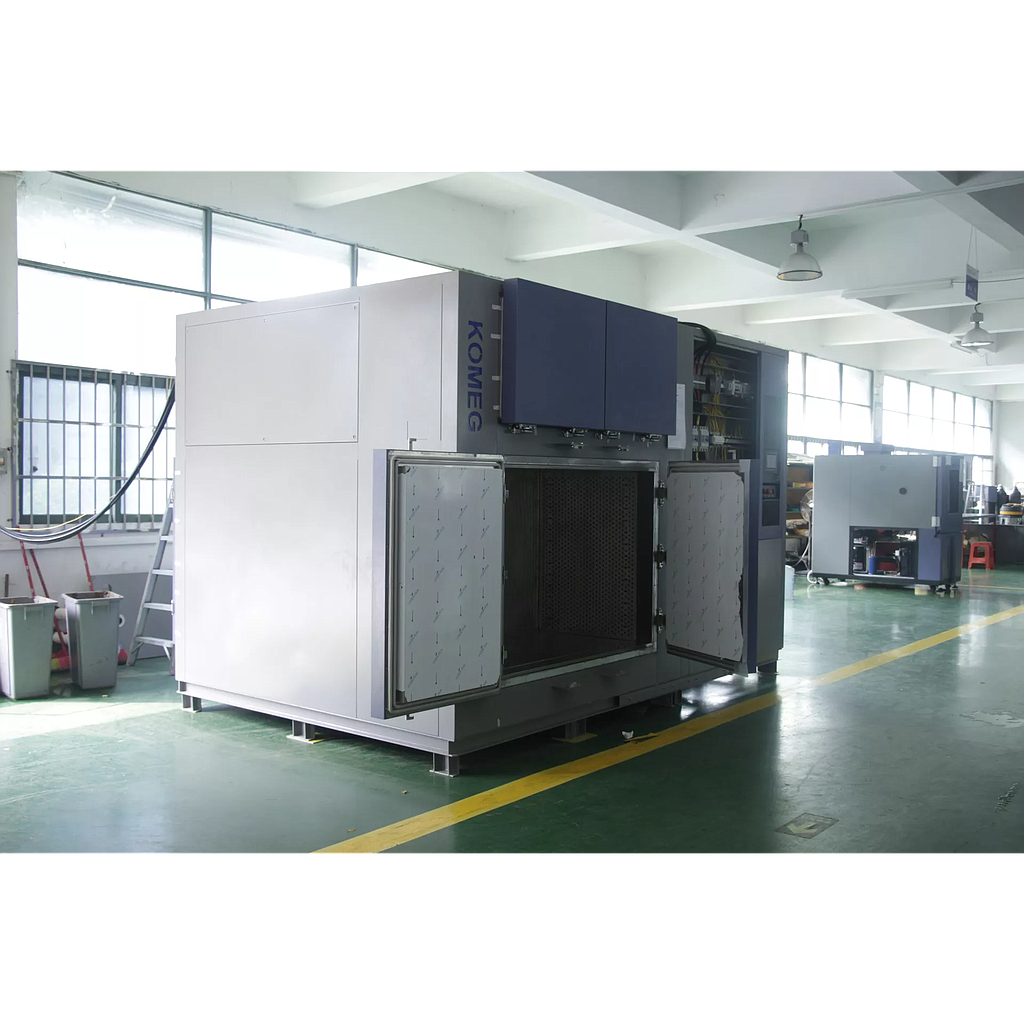

KOMEG TST-486B 2-zone Thermal Shock Test

High temperature shock range: +60℃～+150℃

Low temperature shock range: -55℃～-10℃

Temp. range of hot zone: +60 ～ +200℃

Temp. range of cold zone: -75℃～-10℃

Temperature uniformity: ≦±2℃

Temperature fluctuation: ≦±0.5℃

Temperature shock range and recovery time: -45°C～+150°C recovery time 5min(sensor at the air outlet)

High and low temperature exposure time: 30 mins;

Basket transfer time: Less than 10 seconds

Internal dimension: W 600 × H 900 × D 900 mm

External Dimension: About W 4000 × H 2200 × D 2100 mm(Does not contain the machine prominent part)

Interior material: SUS304 Matte stainless steel plate

External material: High-quality carbon steel, the surface for electrostatic color spray treatment

Insulation material: Rigid polyurethane foam insulation + glass fiber
