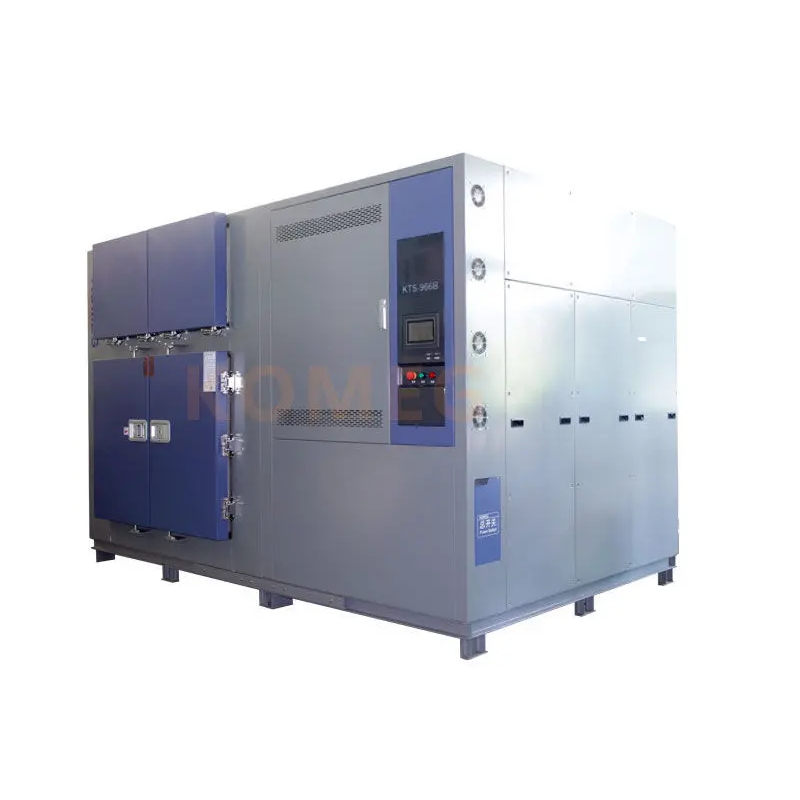

KOMEG KTS-996A Thermal Shock Chamber (996L)

Volume: About 996L

Inner size: W 900 mm *H 800 mm* D 1400 mm

Outer size: W2012mm*H1910 mm*D 2412 mm

Floor area: About 4.85m2

Shock Temp. range: Low temperature: -40℃～-10℃, high temperature:+60℃～+150℃

Temp deviation: ±2.0℃

Temp Uniformity: ±2.0℃

Temp fluctuation: ≤1℃ (≤±0.5℃, according to GB/T5170-1996

Conversion time: ≤ 5 sec

Recovery time: ≤ 5 min

Temperature shock performance: High temperature exposure + 150 ℃ for 30 minutes

Max load: LED size: 1200*600*50mm，Weight: 6kg*2=12kg, heating: 16W

High-temperature storage: +60 ～ +200℃

Low-temperature storage: 0 ～-60℃

Noise: ≦75 (dB)

Outer chamber material: High-quality anti-corrosion electrolytic board, surface electrostatic powder baking paint, color is KOMEG standard color

Inner chamber material: SUS304 stainless steel plate, thickness = 1.0 mm; the inner liner is fully welded.

Insulation: Hard polyurethane foam insulation layer, thickness = 100mm, flame retardant grade B2

Door: Full size Single door , left open
