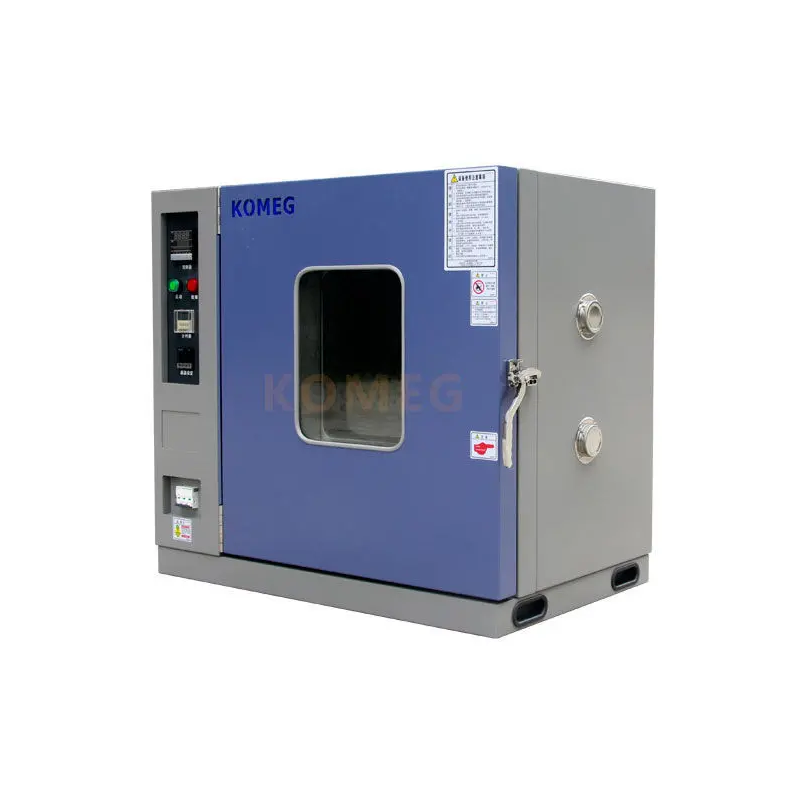

KOMEG KOV-136A High Precise Drying Oven (+10℃ ～ +150℃)

Air supply mode: Forced air circulation

Temperature Range: RT+ 10℃ ～ +150℃

Temp fluctuation: ±0.5℃

Temp Uniformity: ±2.0℃ (RT+10℃ ～ +100℃); ±3.0℃ (+101℃ ～ +150℃)

Heat up time: RT+ 10℃ ～+150℃ 50min (no-load)

Control mode: PID+SSR output

Interior dimension: W 550 × H 550 × D 450 mm

Exterior dimension: about W 960 × H 1710 × D 760 mm

Door: Single door with rubber stopper and plastic cover.

Materials: interior material: 304# stainless steel； External material: high-quality carbon steel with static color spray

Insulation materials: Rigid polyurethane foam insulation layer + glass fiber.

Heater: Fins radiator pipe-shaped stainless steel electric heater

Temperature controller: Korea imported thermostat ST-570

High precision (0.1%)

High performance

Support multi- input (T / C, RTD, DCV)

Multi-output and simultaneous output (Max 4 points)

Alarm output 1 point

Temperature measurement: K thermoelectric pairs

Frame material: Stainless steel plate 2 pcs( Height adjustable )
