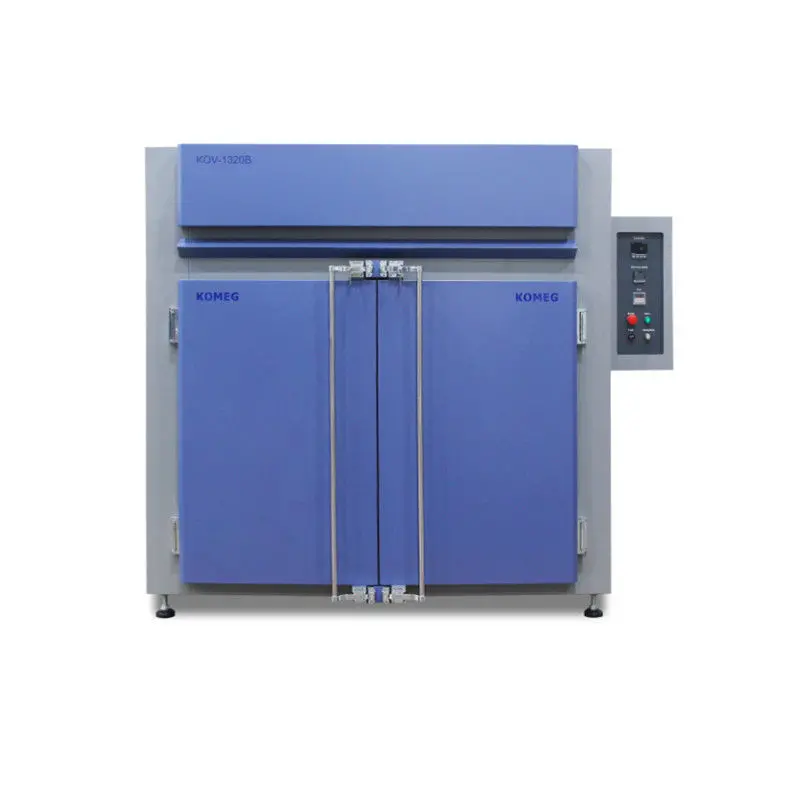

KOMEG KOV-1320B High Precise Drying Oven (10℃ ～ +200℃, 1320L)

Test Conditions: Measured at room temperature +25℃ under no load, temperature performance test is measured according to the relevant provisions of IEC 60068 -3; sensor is placed at the air outlet of the air handling unit

Workshop capacity: 1320L

Temperature Rang: RT+10 ～ +200℃

Temp Uniformity: ±2.0℃ (RT～ +100℃)

±3.0℃ (101 ～+200℃)

Heat up time: RT+10℃ ～ + 200℃ Approx 65min

Control mode: PID+SSR output

Interior dimension: W1500 × H1000 × D 800 mm

Exterior dimension: about W2200×H1925 ×D 1100 mm

Floor area: Approx 2.75m2

Motor: Low Voltage Asynchronous High Temperature Long Shaft Motor
