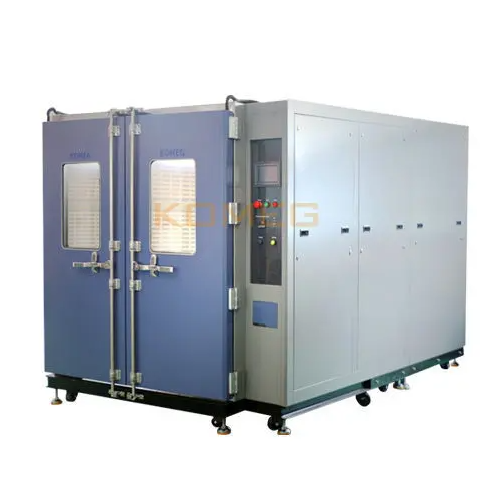

KOMEG KMHW-4 Walk-in Environmental Chambers (-60ºC~120ºC)

Volume: 9m³

Interior Dimensions: (WxHxD) 2100x2100x2050mm

Exterior Dimensions: (WxHxD) 3250x2350x2250mm

Safety device (standard):

No fuse breaker, over pressure, over heat and over current protection for compressor

Over temp. protect, over load protect of blower, dry heat protection

Standard accessories: Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator

Control System: Balanced Temperature & Humidity Control System

Refrigeration system:

Water Cooled

Semi-Hermetic compressor, cascade stage refrigeration system

CFC-Free refrigerant (HFC-507/HFC-23)

Controller:

Panel:7-inch LCD Touch panel, Chinese or English display selectable

Operation model: Program or fix point running

Memory capacity: 120programs,1200steps,

All repeat 999 cycles, part repeat 99 cycles

Accuracy: Temp.:0.1% of F.S±1 digit ; Humidity:0.1% of F.S±1 digit

Input: Temp.:pt-100, Humidity: pt-100 or ~5V DCV

Comm.port: RS-232 or RS-485

Temp. range: Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC

Humidity Range: 10%,20%,30%~95%

Temp. constancy: ±0.5ºC

Humidity constancy: ±2.5%R.H

Temp. uniformity: ±2.0ºC

Humidity uniformity: ±5.0%R.H

Ambient Temp.: +5ºC~+35ºC

Wiring method: AC 380±10%50Hz,3 phase 4 wires +Ground Wires

Heat up time: +20ºC~+80ºC, Within 60 min

Pull down time: +20ºC~-55ºC\ -40ºC\-20ºC\-10ºC ,Within 120 or 90 or 60 min

Interior material: Stainless Steel Plate(SUS 304)

Exterior material: Baked Painting Steel Or Stainless steel(SUS304)

Insulation material: Rigid polyurethane foam

Door size (mm): Single wing:W800*H1800;Double wing:W1600*H1800;
