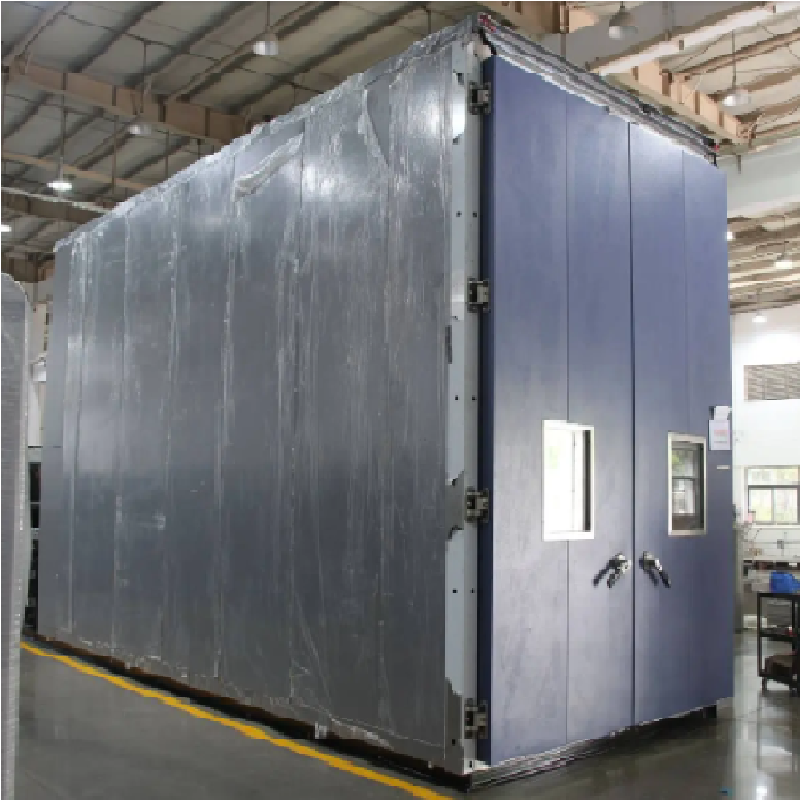

KOMEG KMHW-36S Walk In Climatic Chamber (-70℃～+150℃)

Temp. range: -70℃～+150℃

Temp. deviation: ≤±2.0℃

Temp. fluctuation: ±0.5℃

Heating up rate: From -50 ℃ to + 90 ℃ 3℃/min linear

Cooling rate: From +90 ℃ to -50 ℃ 1℃/min linear

Humidity range: 20%R.H.～98%R.H

Humidity deviation: ±3.0％RH（＞75％RH）±5.0％RH（≤75％RH）

Humidity fluctuation: ±2.0％RH

Floor capacity: 30000N/㎡

Full load: Static hot load 1000kg (500kg iron, 300kg aluminum, 200kg copper), heat load 3000W.

Other requirements: Humidity range adjustment possible between +25 to +55 degrees Dew point: +25 to 54 Celsius

Cable port: φ100mm*1 located on both side of chamber, with rubber stopper

Door: Double door W（750+750）×H 3000mm
