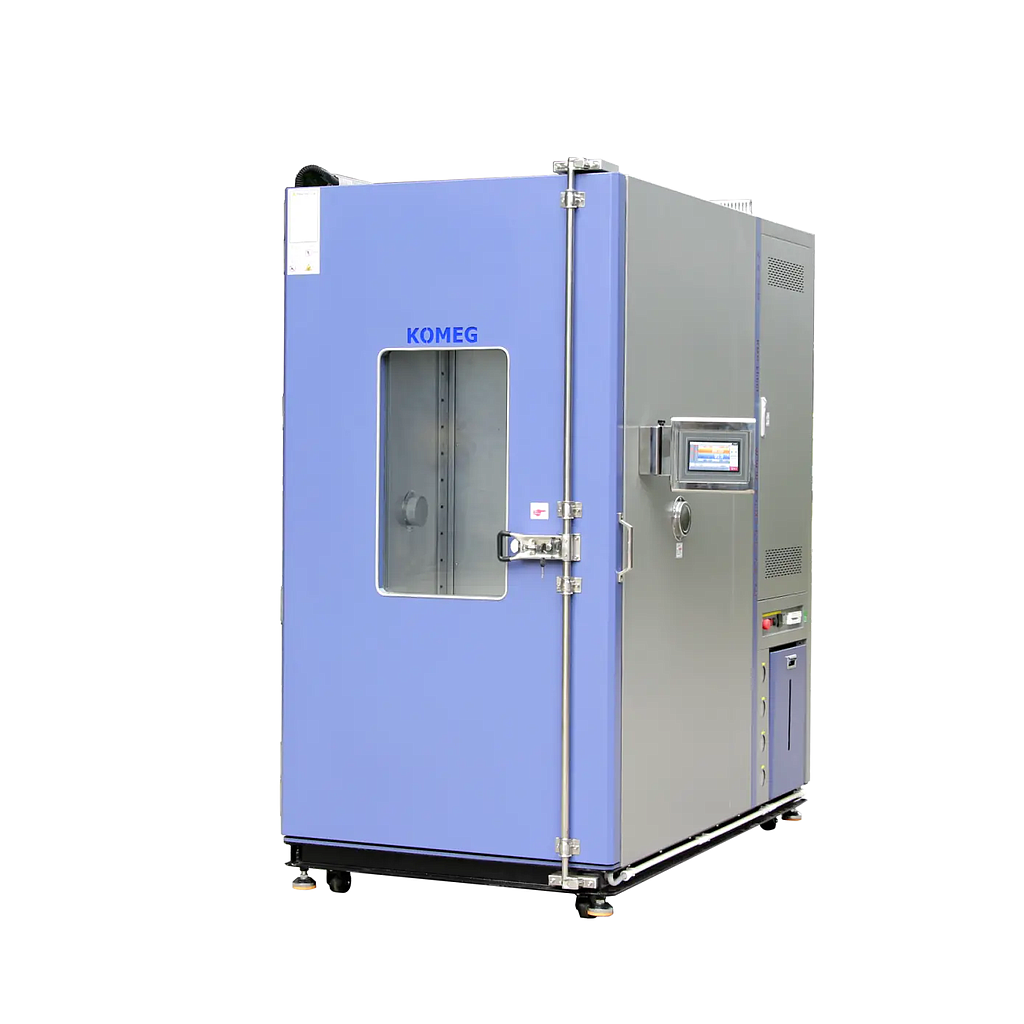

KOMEG KMH-2000L Environmental Test Chamber (-70℃~+150℃)

Temp. range: -70℃～+150℃

Temp. deviation: ≤±2.0℃

Temp. fluctuation: ±0.5℃

Heating up rate: From -40℃ to +85℃, linear, ≧200℃/h, with load of 300kg, No Heat Emission

Cooling rate: From -40℃ to +85℃, linear, ≧200℃/h, with load of 300kg, No Heat Emission

Humidity range: 20%R.H.～98%R.H

Humidity deviation: ±3.0％RH（＞75％RH）±5.0％RH（≤75％RH）

Humidity fluctuation:±2.0％RH

Floor capacity: 300KG/m2

Full load: 10 PV Modules to be loaded in a vertical orientation. Single panel max. size of 2000*1000*50mm. Total weight of 300KG.
