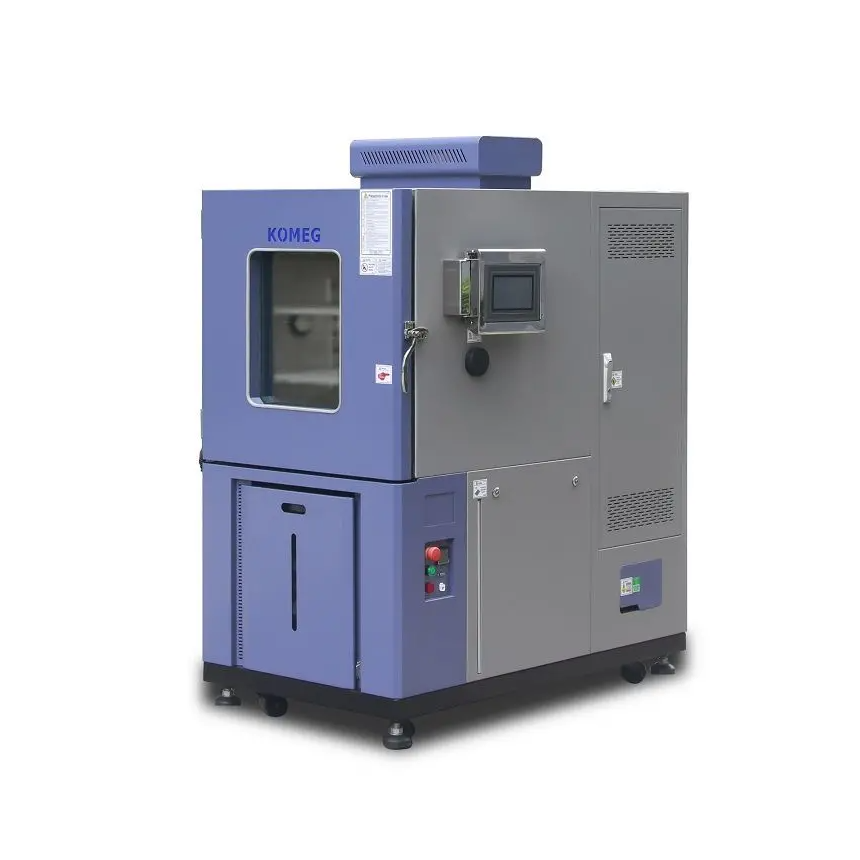

KOMEG KMH-150S Environmental Test Chamber (-70°C~150°C)

Temp. range: -70ºC~+150ºC

Interior size (WxHxD): 600x600x460mm

Exterior size (WxHxD): 880x1730x1400mm

Power: 5.8kW

Weight: 280kg

Humidity uniformity: ±3.0%R.H

Heat up time: -70ºC~+100ºC, within 60 min

Pull down time: +20ºC~-70ºC, within 80 min

Safety device (standard):

NFB, over pressure, over heat and over current protection for compressor

Over temp. protect, over load protect of blower, dry heat protection

Controller:

Panel:7-inch LCD Touch panel, Chinese or English display selectable

Operation model: Program or fix point running

Memory capacity: 120programs,1200steps,

All repeat 999 cycles, part repeat 99 cycles

Humidity Range: 20~98%R.H

Temp. constancy: ±0.5ºC

Humidity constancy: ±2.5%R.H

Temp. uniformity: ±2.0ºC

Interior material: Stainless Steel Plate(SUS 304)

Exterior material: Baked Painting Steel Or Stainless steel (SUS304)

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

Ambient Temp.: +5ºC~+35ºC

Wiring method: AC 380±10%50Hz, 3 phase 4 wires +Ground Wires
