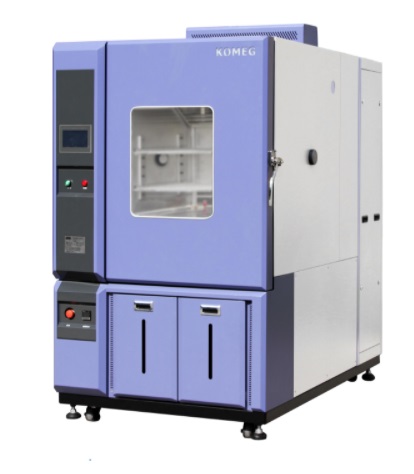

KOMEG KMH-100R Temperature And Humidity Test Chamber (-20℃～150℃,20 ~ 98% R.H, 100L)

Temp. range: -20℃～150℃

Interior size (WxHxDmm): 500x500x400

Exterior size (WxHxDmm): 600x1650x1320

Power(KW): about 6kW

Weight(KG):

Humidity uniformity: ±3.0％R.H (no load)

Heat up time: -20℃～+100℃,within 35 min (no load)

Pull down time: +20℃～-20℃, within 45 min (no load)

Standard accessories: Sight window*1, Lead hole (portΦ50mm)*2, Sample rack*2, Window lamp*1,

Control System: Balanced Temperature & Humidity Control System Refrigeration system

Air Cooled （Water Cooled Type is option）

Hermetic compressor, Single stage refrigeration system,

refrigerant(R404A)

Controller

Panel:7-inch LCD Touch panel, Chinese or English display selectable

Memory capacity : 269 group,13450 steps,

Humidity Range: 20～98％R.H

Humidity accuracy :

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

Temp fluctuation ≤±0.5°C

Humidity fluctuation ±2.0%RH

Temp Uniformity ±2.0°C

Interior material: Stainless Steel Plate（SUS 304）

Exterior material: Stainless steel(SUS304)

Insulation material: Rigid polyurethane Foam and flame retardant grade B2

Ambient Temp: +5℃～+35℃

Wiring method: AC 380±10％ 50Hz ,3 phase 4 wires + Ground Wires

DATASHEET
