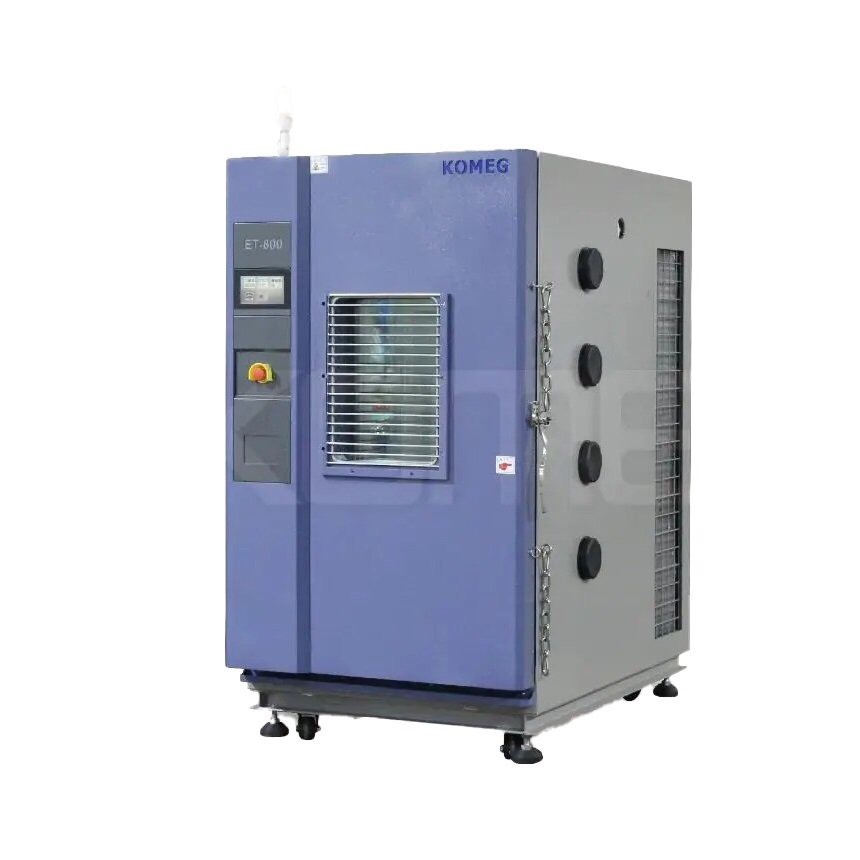

KOMEG ET-150L Environmental Test Chamber (-40ºC~+150ºC)

System: Balanced & Humidity Control System

Temp.Range: -40ºC~+150ºC

Temp.constancy: ±0.5ºC

Temp.uniformity: ±2.0ºC

Heat up time: -40ºC~+100ºC Within 45 mins

Cool down time: +20ºC~-40ºC Within 60 mins

Interrior material(CM) (WxHxD): 60x60x46

Exterrior material(CM) (WxHxD): 100x160x98

Interior material: Stainless Steel Plate(SUS 304)

Exterior material: Baked Painting Steel Or Stainless steel(SUS304)

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

Refrigeration system: Air Cooled; Hermetic compressor, refrigeration system

Controller: LCD Touch panel, Chinese or English display selectable; Operation model /Program or fixpoint rinning; Memory capacity, 120programs, 1200steps, all repeat999cycles, part 99 cycles.

Safety Devices: No fuse breaker, overpressure, overheat and over current protectors for compressor, over temp. protector, overload protector of fan, dry heat

Standard Accessories: Sightwindow*1, cable port(portΦ50mm)*1,shelves*2,chamberlamp*1, power cable 2m

Weight: 250kg

Ambient Temp.: -5ºC~+35ºC

Power: AC 380±10% 50Hz 3 phase 4 wires + Ground Wires
