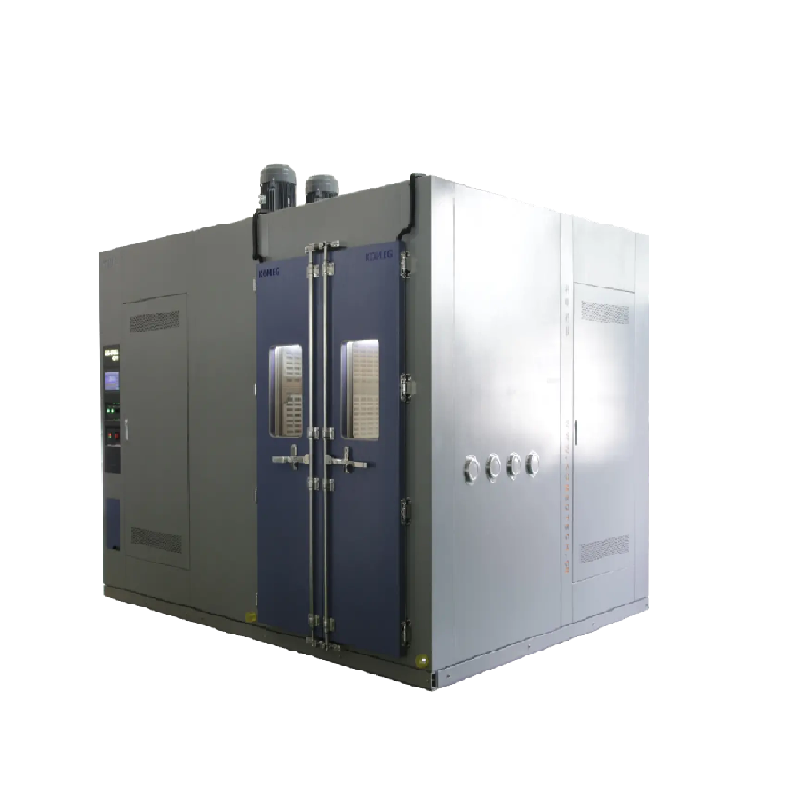

KOMEG ESS-3000S Rapid Temperature Change Chamber (-70℃ ～ +150℃, 3000L)

Volume: 3000L

Temp. range: -70℃～+150℃

Temp. deviation: ≤±2.0℃

Temp. fluctuation: ±0.5℃

Heating up rate: From -40 ℃ to + 85 ℃ 15℃/min linear

Cooling rate: From -40℃ to +85℃, linear, 15℃/min

Humidity range: 20%R.H.～98%R.H

Humidity deviation: ±3.0％RH (>75％RH) ±5.0％RH (≤75％RH)

Humidity fluctuation: ±2.0％RH

Floor capacity: 300KG/m2

Full load: 10 PV Modules to be loaded in a vertical orientation; Single panel max. size of 2000*1000*50mm; Total weight of 300KG.

Cable port: φ100mm*1 located on both side of chamber, with rubber stopper

Door: Double door (according to design), with observation window (the size depend on final design)
