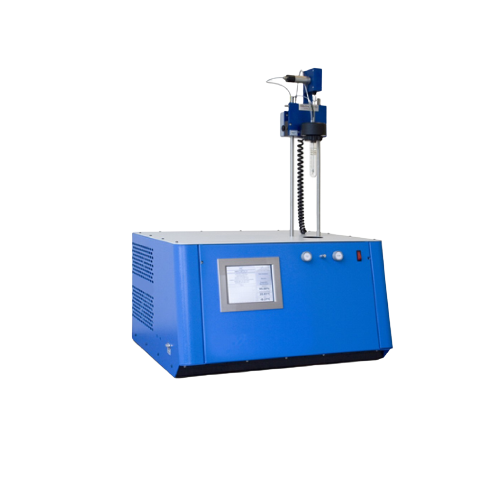

Koehler KLA-5-TS Automatic Freezing Point Analyzer with Touch Screen (0.06°C; ±0.1°C, One-stage)

Determines the temperature below which solid hydrocarbon crystals may form in aviation turbine fuels and aviation gasoline.

Specifications:

Conforms to the specifications of: ASTM D1177, D1655, D2386, D5901 (Withdrawn 2010); IP 16; ISO 3013

Temperature Range: One-Stage: +30 to -45°C Two-Stage: +30 to -80°C

Resolution: 0.06°C Accuracy: ±0.1°C

Repeatability/Reproducibility: as per standard test methods or better

Data storage: 60,000 analyses

Electrical requirements: 115V±15%/60Hz 220V±15%/50 to 60Hz

Dimensions:

- WxDxH,in.(cm): 26 x 23 3⁄4 x 31 1⁄2 (66x60x80)

- Net weight: 176.5 lbs (80kg)

Manual
