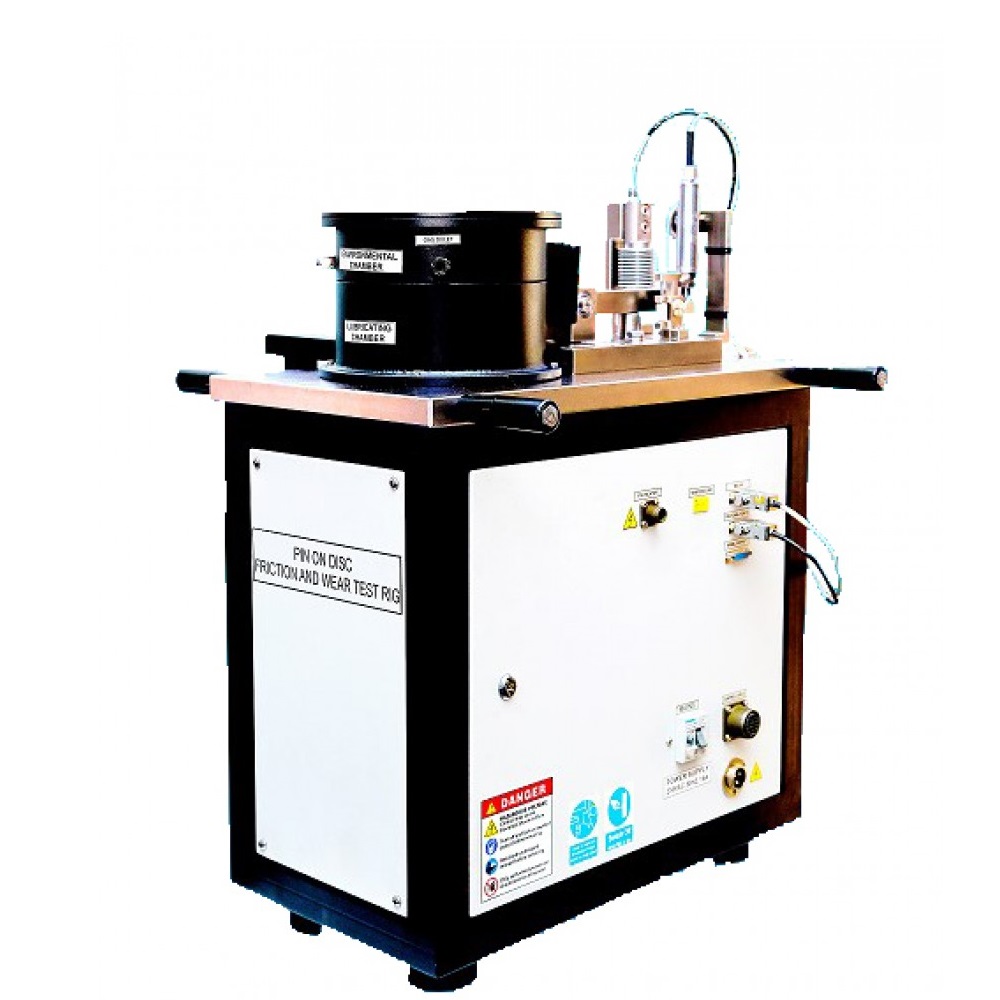

Koehler K93590 Pin on Disc Tester (100-2000rpm; 200N)

Determines the wear of materials during sliding using a pin-on-disc apparatus.

Specifications

- Conforms to the specifications of: ASTM G99

- Sliding speed range: 0.26-10 m/sec

- Disc rotation speed: 100-2000 rpm

- Maximum normal load: 200N

- Frictional force: 0-200N

- Wear measurement range: 4mm

- Pin size: 3-12mm diagonal/diameter

- Disc size: 60mm diameter x8mm thick

- Wear track diameter: 0-140mm

Electrical requirements: 230V 50/60Hz

Shipping information

- Shipping weight: 440 lbs (200kg)

- Dimensions: 18 Cu. ft.

Included accessories

- Electronic Controller

- Connecting Cables

- Spare Fuse (2)

- Set of Weights

- Set of Hand Tools

- Set of Pins

Additional accessories

- K93900 Data Acquisition Software

- K93500-1 Environmental Chamber

- K93500-2 Lubricant Recirculation System

- K93500-3 Pin - Heating System, up to 250°C

- K93500-4 Specimen Holders (ball, square, rectangle)

- K93500-5 Wear Discs
