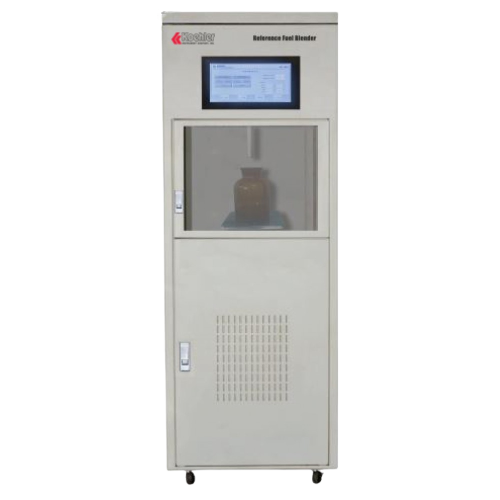

Koehler K90900-B Automatic Reference Fuel Blending System (2 min/500 mL)
The Koehler Reference Fuel Blender prepares the reference fuel blends by weight using a precision balance based on the ASTM test methods.
Specifications
Conforms to the specifications of: ASTM D2699, ASTM D2700, ASTM D2885, ASTM D613
Application: For Cetane and Octane measurement
Measurement mode: Gravimetric measurement by precision balance
Fuel blending mode: Automatic fuel blending unit with software
Operating mode: Built-in Touch Screen Control Panel
Tank Quantity: 6 tanks
Accuracy: ±0.01 ON/CN
Speed: 2 min / 500 mL
Electrical requirements: 220V, 50/60Hz, 2kW
Dimensions: LxWxH,in.(cm): 25.6x33.5x66.15 (65x85x168)
Net weight: 364 lbs (165kg) (with empty tanks)
