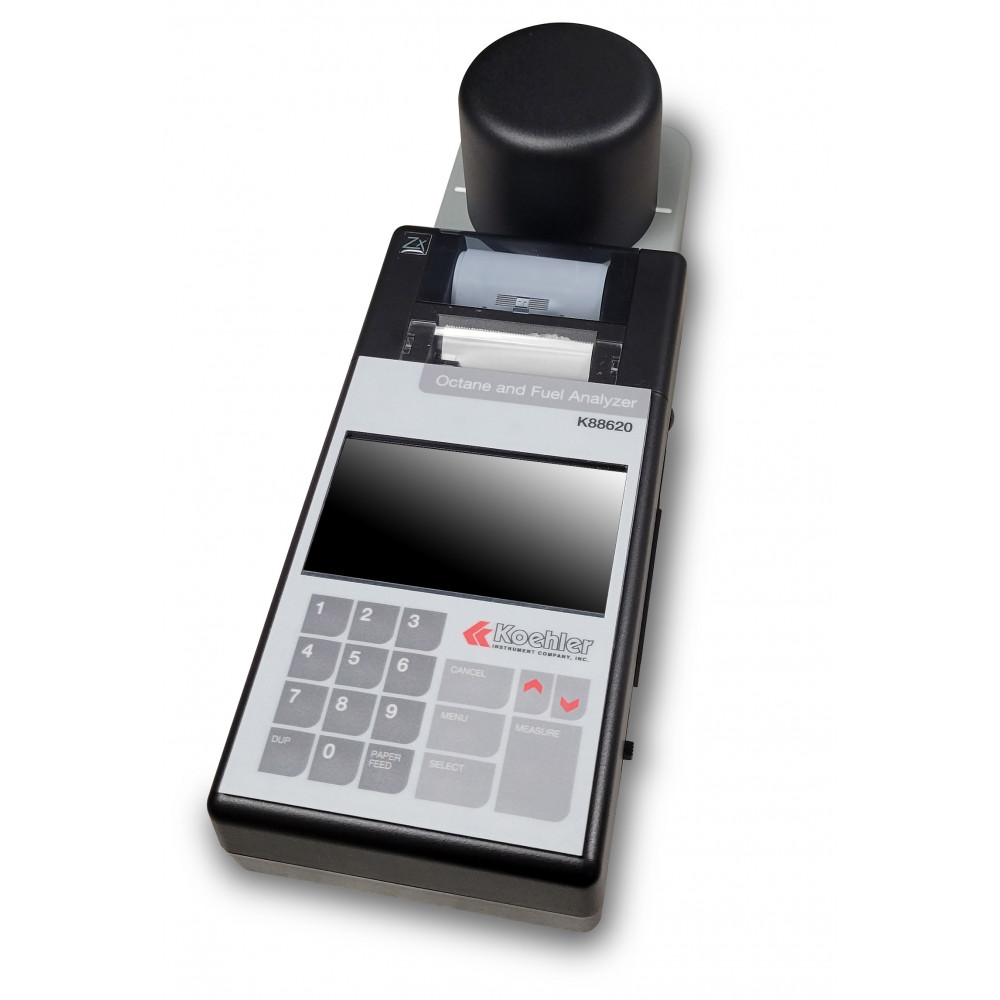

Koehler K88620 Enhanced Portable Fuel Analyzer (810 ~ 1045 nm, 200mL, 75mm)

Accuracy and repeatability equivalent to ASTM approved CFR engine test methods (ASTM D2699, D2700)

System Capabilities:

Pre-calibrated for: Octane number RON, MON, (R+M)/2

Optional Calibrations: Diesel cetane index, cetane number, biodiesel percentage

Outputs: Full Color Display, built-in Printer that includes time and date of analysis

Data Transfer: Via USB port for interface with PC

Data Analysis: Includes full calibration software

Results: Traceable to CFR Engine or other fuel lab standards

Calibrations: Stores up to 10 calibration sets

Automatic fuel detection (Gasoline/E-Gas/Diesel)

Automatic temperature compensation

Self-standardizing to ensure accuracy

Data Storage: Stores data for up to 100 samples

Optical Capabilities:

Measurement Mode: Diffuse transmittance

Spetrum Range: 16 filters covering wavelengths from 810 to 1045 nm

Scan Speed: Up to 10 scans per second

Optical Range: 0 to 6 AU

Resolution: 0.00001 AU

Stability: 0.05 Mili-AU

Measurement Time: Variable (Typically under 25 seconds)

Sample Information:

Sample Size: 200mL with 75mm pathlength

Sample Holder: Reusable glass with chemical seal cover

Sample Preparation: None required

Sample Destruction: None

Dimensions: 4.5” x 13.5” x 2.2”in (12cm x 33cm x 5cm)

Net Weight: 3 lbs. (less than 2 kg)

Electrical Requirements: 120 VAC 60Hz

Included Components

Instrument

Case

AA Batteries

5 Rolls of Printer Paper

AC Power Cord

Calibration Software

User’s Manual

Quick Start Guide

Calibration Manual
