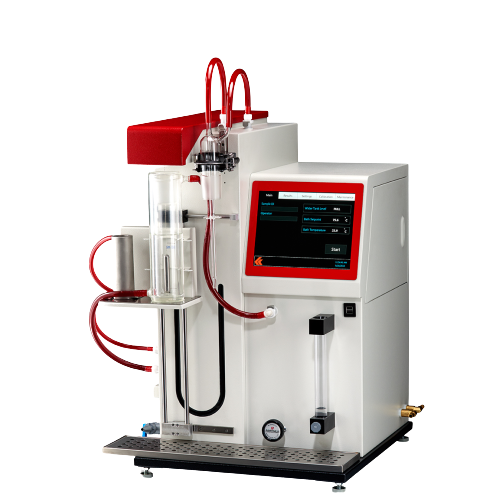

Koehler K88539 Automated Air Release Value Analyzer (75°C, ±0.001g/mL)

The ability of a turbine, hydraulic, or lubricating oil to separate entrained air is a key performance characteristic in applications where agitation causes a dispersion of air bubbles in the oil. To determine air release properties, the sample is heated to a specified test temperature and blown with compressed air.

Specifications:

- Conforms to the specifications of: ASTM D3427; IP 313; ISO 9120; DIN 51381; NF E 48-614; NF T 60-149; BS 2000 Part 313

- Temperature range: Ambient to 75°C (167°F)

- Sample temperature Stability: ±0.1°C

- Air temperature Stability: ±0.2°C

- Density: ±0.001g/mL

Electrical requirements: 230V 50/60Hz Single Phase

Dimensions:

- WxDxH,in.(cm): 24x23x34 (60.96x58.42x86.36)

- Net weight: 115 lbs (53kg)

Included accessories:

- Sinkers, 5mL and 10mL

- Integrated Balance

- Integrated Circulator

- Air Bath for Sinker

- Tubing and Fittings

- Platinum Wire

- Jacketed Test Vessel

Datasheet
