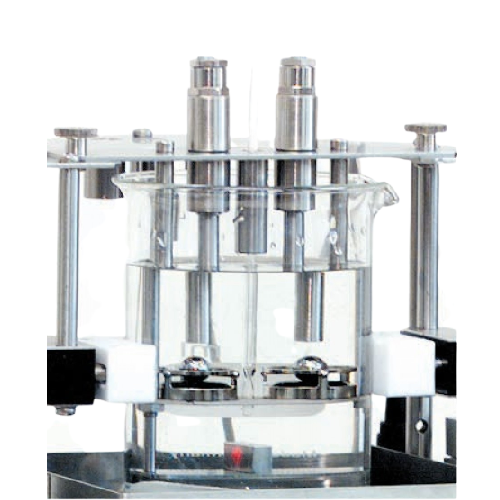

Koehler K87890 Automatic Softening Point Apparatus (0-250°C)

Determines the Softening Point of Bitumen in the range from 30 to 157°C (86 to 315°F) using the ring and ball apparatus immersed in distilled water (30 to 80°C), USP glycerine (above 80 to 157°C), or ethylene glycol (30 to 110°C).

Specifications

- Conforms to the specifications of:

ASTM D36; AFNOR T66-008; EN 1427; ISO 4625; NF EN 1427; IP 58; DIN 52011

- Working temperature range: 0 to 250°C

Electrical requirements: 230V 50/60Hz

Dimensions

- WxDxH, in. (cm): 10 1⁄4 x 21 x 20 (26x53.5x50cm)

- Net weight: 60 lbs (27.2kg)

Shipping information

- Shipping weight: 77 lbs (34.9kg)

- Dimensions: 25x16x31 in. (63.5x40.6x78.7cm)

Included accessories

- Printer

- Glass Beaker (2)

- Shouldered Rings (10)

- Load Balls (10)

- Craddle

- Pt 100 Probe

- Detection Cable

- Stirrer

- RS232C Output

Additional accessories

- K87800-1 Glass Beaker

- K87800-2 Straight Rings, Pack of 10

- K87800-3 Shouldered Rings, Pack of 10

- K87800-4 Conical Rings, Pack of 10

- K87800-5 Detection Lamp

- K87800-6 Ring & Ball Cradle

- K87800-7 PT 100 Probe

- K87800-8 Heating Element, 1000W

- K87800-9 Roll of Printer Paper

- K87800-10 Load Ball, Pack of 10

Datasheet
