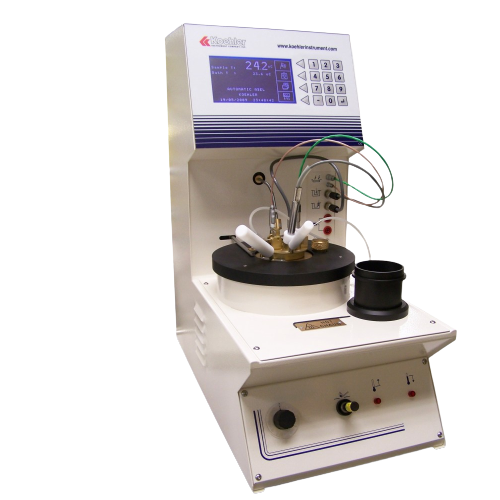

Koehler K87390 Automatic Abel Flash Point Tester (~110°C)

The automated Abel flash point tester is used primarily to test flammable and combustible materials for shipping and safety regulations.

Specifications

- Conforms to the specifications of:

IP 170; ISO 13016; NF T 66-009; DIN 51755

- Temperature range: Ambient to 110°C; Subambient to -40°C with external cooling

Electrical requirements: 230V 50/60Hz, Single Phase

Dimensions

- lxwxh,in.(cm): 10.25x21x19.75 (26x5.53x50)

- Net weight: 60 lbs (27.2kg)

Shipping information

- Shipping weight: 81 lbs (36.7kg)

- Dimensions: 25x16x31 in. (63.5x40.6x78.7cm)

Included accessories

- Abel Cup

- Abel Cover

- Pt 100 Probe

- Detection Cable

- Flexible Stirrer Shaft and Motor

- Insulated Tubing for Cryostat connection

- Supervisor Software

Additional accessories

- K33086 Refrigerated Circulator, 120V 60Hz (-40°C)

- K33087 Refrigerated Circulator, 240V 50Hz (-40°C)

- K87300-5 Flexible Stirrer Shaft and Coupling

- K87300-9 Electric Ignitor

- K87300-10 Tube for Propane gas 6 x 12mm (10m)
