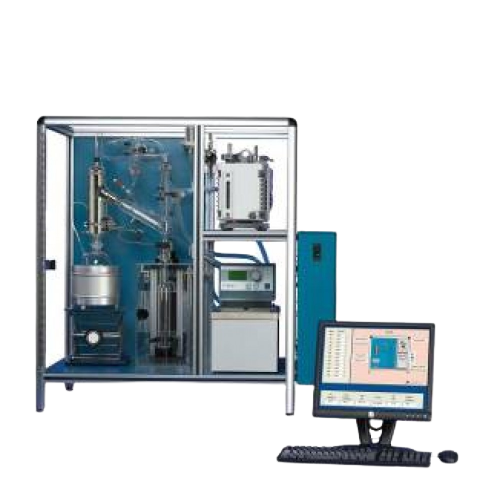

Koehler K87170 Automatic Vacuum Distillation System (1-50mmHg)

Determines the range of boiling points for petroleum products that can be partially or completely vaporized at a maximum liquid temperature of 400°C at reduced pressures.

Specifications

- Conforms to the Specifications of: ASTM D1160; ISO 6616

- Condenser temperature range: Ambient +5°C to 150°C

- Vacuum range: 1.00 mmHg to 50 mmHg (0.13 to 6.7 kPa)

- Distillation temperature range: Ambient to 400°C (752°F)

Electrical requirements: 120 or 220/240 VAC

50/60Hz

Dimensions

- (HxWxD): 91.5x94x53cm (36x37x21in)

- System weight: 91kg (200lb)

Included accessories

- Distillation Column

- Mounting Rack

- 500mL Boiling Flask

- Electric Heating Mantle

- Lab Jack

- Boiler Temperature Probe

- Vapor Temperature Probe

- 200mL Receiver

- Clamps

- Boiling Chops

- Bath for heating of condenser, side arm, and receiver

- Automatic Vacuum System

- PC for Distillation Control
