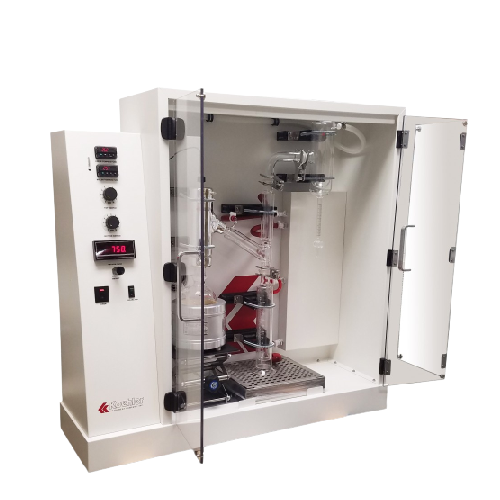

Koehler VDS5000 Manual Vacuum Distillation System (0.1~760 Torr)

The Koehler VDS5000 Manual Vacuum Distillation System is the latest design for determining, at reduced pressures, the range of boiling points for petroleum products according to ASTM D1160 and related specifications

Specifications

Conforms to the specifications of: ASTM D1160; ISO 6616; JIS K2254

Temperature range: Ambient to 425°C (797°F)

Temperature display: 0.1°C resolution

Temperature accuracy: ±0.5°C

Vacuum range: 0.1 Torr to Atmospheric Pressure (760 Torr)

Vacuum display: 0.1 Torr resolution

Vacuum accuracy: ± 0.2 Torr

External circulator temperature range: Ambient +5°C to 150°C

Electrical requirements: 220-240V 50/60Hz

Dimensions

- WxDxH,in.(cm) Cabinet: 291⁄2 x 91⁄4 x 321⁄2 (75x23.5x82.6)

Control box: 73⁄4 x 91⁄4 x 93⁄4 (19.7 x 23.5 24.7)

- Net Weight: Cabinet: 62 lbs (28.2 kg)

Control box: 21 lbs (9.6 kg)

Shipping Information

- Shipping weight: 104 lbs (47.2 kg)

- Dimensions: 49x34x16 in. (124.5x86.4x40.6 cm)
