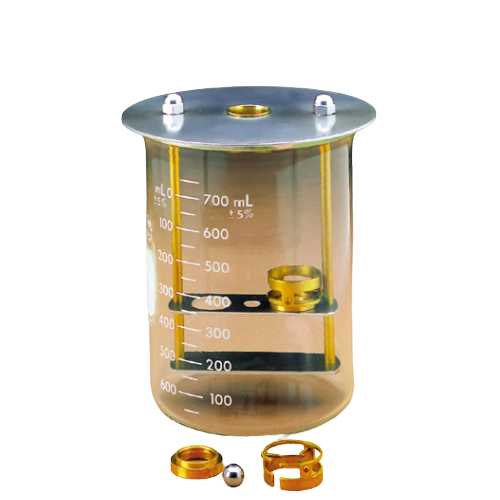

Koehler K80000 Softening Point Apparatus (2.3kg)

The softening point is the temperature at which the bitumen disks soften and sag downward a specified distance.

Specifications

- Conforms to the specifications of: ASTM D36, E28; AASHTO T53; IP 58, 198; NF T 66-008

Electrical requirements: 220-240V 50/60Hz

Dimensions

- lxwxh,in.(cm): 5x5x10.5 (12.7x12.7x26.7)

- Net weight: 5 lbs (2.3kg)

Shipping information

- Shipping Weight: 8 lbs (3.6kg)

- Dimensions: 1.5 Cu. ft.

Additional accessories

- K42000 Powertrol Heater

- K42090 Powertrol Heater, 220-240V 50/60Hz

- 250-000-15F ASTM 15F Thermometer, Range: 30 to 180°F

- 250-000-15C ASTM 15C Thermometer, Range: –2 to +80°C

- 250-000-16F ASTM 16F Thermometer, Range: 85 to 392°F

- 250-000-16C ASTM 16C Thermometer, Range: 30 to 200°C

- K80001 Ring. Brass, shouldered ring conforming to ASTM specifications. Pack of 10

- K80002 Ball. Hardened steel, conforming to ASTM specifications. Pack of 10

- K80003 Ball-Centering Guide
