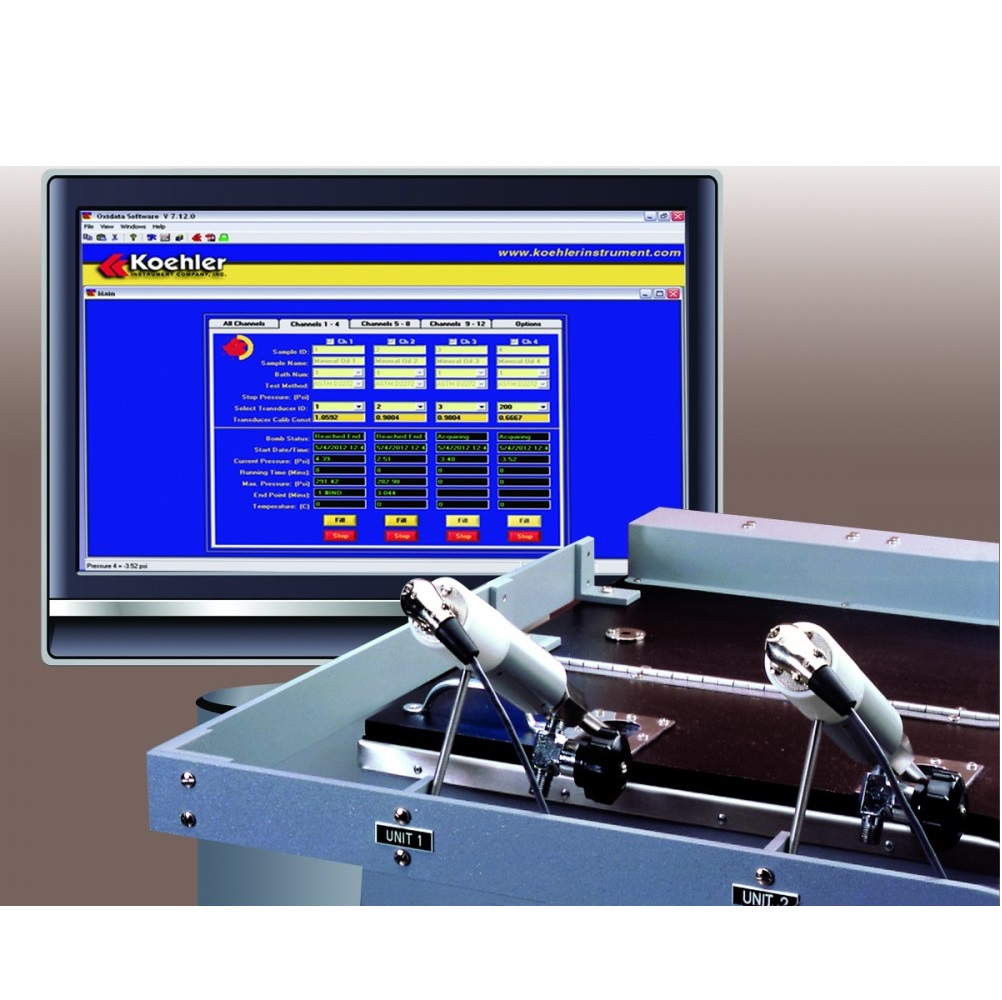

Koehler K70390 RPVOT Oxidation Test Apparatus (3 oxidation vessels)

The RPVOT (RBOT) procedure employs severe oxidation conditions to rapidly determine oxidation stability.

Specifications

- Conforms to the specifications of: ASTM D2112, D2272, D4742; IP 229

- Capacity: 2, 3 or 4 oxidation pressure vessels

- Temperature control:

+ Maximum temperature: 200°C (392°F)

+ Control stability: ±0.02°C (±0.04°F)

- Heater range: 0-2750W

- Recommended bath medium: high temperature silicone heat transfer fluid

- Bath capacity: 25gal (95L)

- Capacity: 3 oxidation vessels

Electrical requirements: 220-240V 50/60Hz, Single Phase, 5.3A

Dimensions

- lxwxh,in.(cm): 37x26x33 (94x66x84)

- Net weight: 284 lbs (129kg)

Shipping information

- Shipping weight: 420 lbs (190.5kg)

Dimensions: 34x52x32 in. (86.4x132.1x81.3cm)
