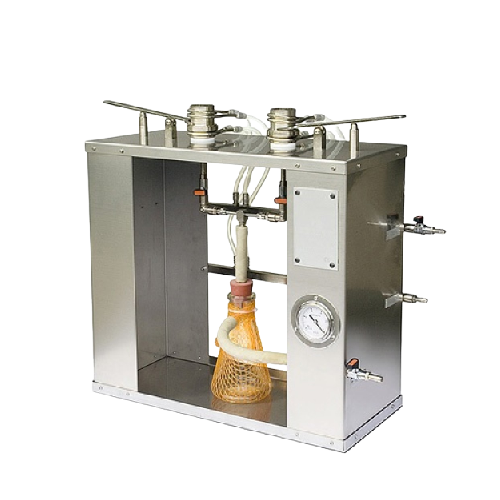

Koehler K48319 Total Sediment Tester (0.4%~0.5% m/m)

For the determination of total sediment up to 0.40% m/m for distillate fuel oils containing residual components and to 0.50% m/m in residual fuel oils having a maximum viscosity of 55 cSt (mm2/s) at 100°C.

Specifications

- Conforms to the specifications of: ASTM D4870; BS 2000 pt.390; IP 375; IP 390 pt.A; ISO 10307 pt. 1 & 2

- Electrical requirements: 230V 50Hz

Dimensions

- lxdxh,in.(cm): 23.6x19.7x20.9 (60x50x53)

- Net weight: 41.89 lb (19kg)

Included accessories

- Two Filtration Cells

- Throttle Valve for Vacuum Regulation

- Heating or Cooling Coil

- Pipes for Steam, Water and Vacuum

- 500mL Flask fitted with Protected Mesh

- Vacuum Manometer

Additional accessories

- K48310-9 Thermometer, Range 95 to 105°C

- K48310-10 Steam Generator

- K48310-11 Diaphragm Vacuum Pump

Datasheet

Manual
