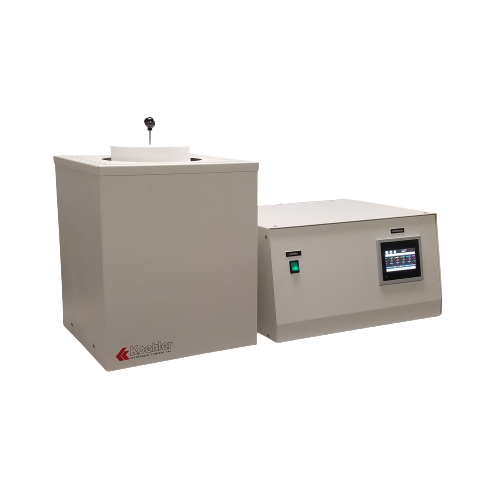

Koehler K47001 Autoignition Apparatus (~1200°C)

Determines the lowest temperature at which the vapors of a liquid or solid chemical sample will self-ignite under prescribed laboratory conditions.

Specifications

- Conforms to the specifications of: ASTM E659

- Temperature range: Ambient to 1200°C

- Temperature control: digital setpoint touch screen control panel accurate to within ±1°C

- Flask Temperature Display: 0-1200°C, via Touch Screen Control Panel

Electrical requirements: 220-240V 50/60Hz, Single Phase, 7.7A

Dimensions

- WxDxH: 37x17x25 in (94x43.2x63.5 cm)

- Net weight: 85 lbs (38.6 kg)

Shipping information

- Shipping weight: 125 lbs (56.7 kg)

- Dimensions: 48x48x32 in (122x122x81.3cm)

Included accessories

- Borosilicate Test Flask, 500mL

- Thermocouples (4)

Additional accessories

- 362-001-000 Syringe, 1mL

- K470-0-1-14 Needle, 6", stainless steel

- 374-115-001 Hot Air Gun, 115V 60Hz - For purging product gases between tests

- 374-230-001 Hot Air Gun, 220-240 50/60Hz - For purging product gases between tests

Datasheet

Manual
