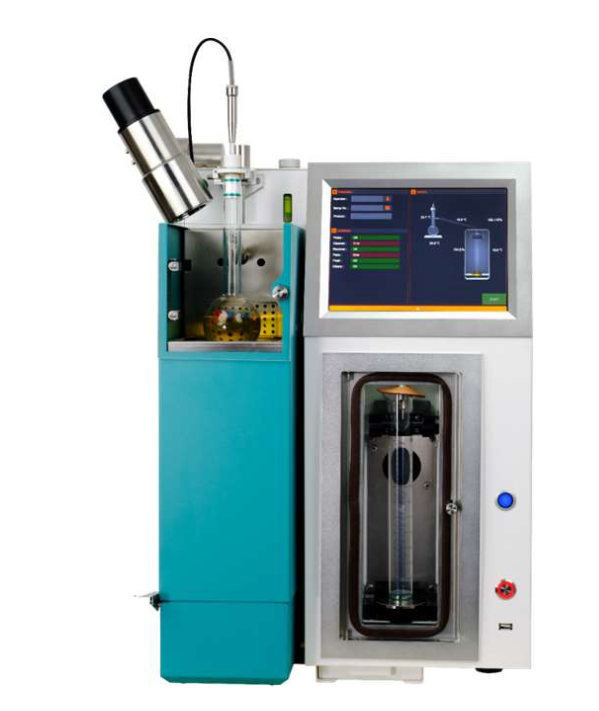

Koehler K45750-DP Automatic Atmospheric Distillation Tester (0 - 450°C, 0 - 103%)

Steam Temperature:

Range: 0 - 450°C

Temperature Accuracy: ±0.1°C

Sample Volume:

Range: 0 - 103%

Resolution: 0.01 mL

Accuracy: ±0.1 mL

Condenser Temperature:

Range: -5 - 65°C

Accuracy: ±0.1°C

Distillation Rate:

Range: 2 - 10 mL/min

Resolution: 0.1 mL/min

Recovery Chamber Temperature:

Range: 0 - 60°C

Accuracy: ±0.1°C

Ambient Air Pressure:

Range: 1 - 130 kPa

Resolutions: 0.01 kPa

Accuracy: ±0.1 kPa

Safety:

Built in Flame Detector Units (2)

Built-in Fire Extinguisher (air supply needed)

Data Storage / Export:

Internal storage of 1000 test results (expanded storage capacity asneeded)

USB Port, RJ45 Ethernet, RS232 and WIFI exportation methods

Capacity to connect to LIMS and LAN

Electrical Requirements: 110 - 230V, 50/60Hz
