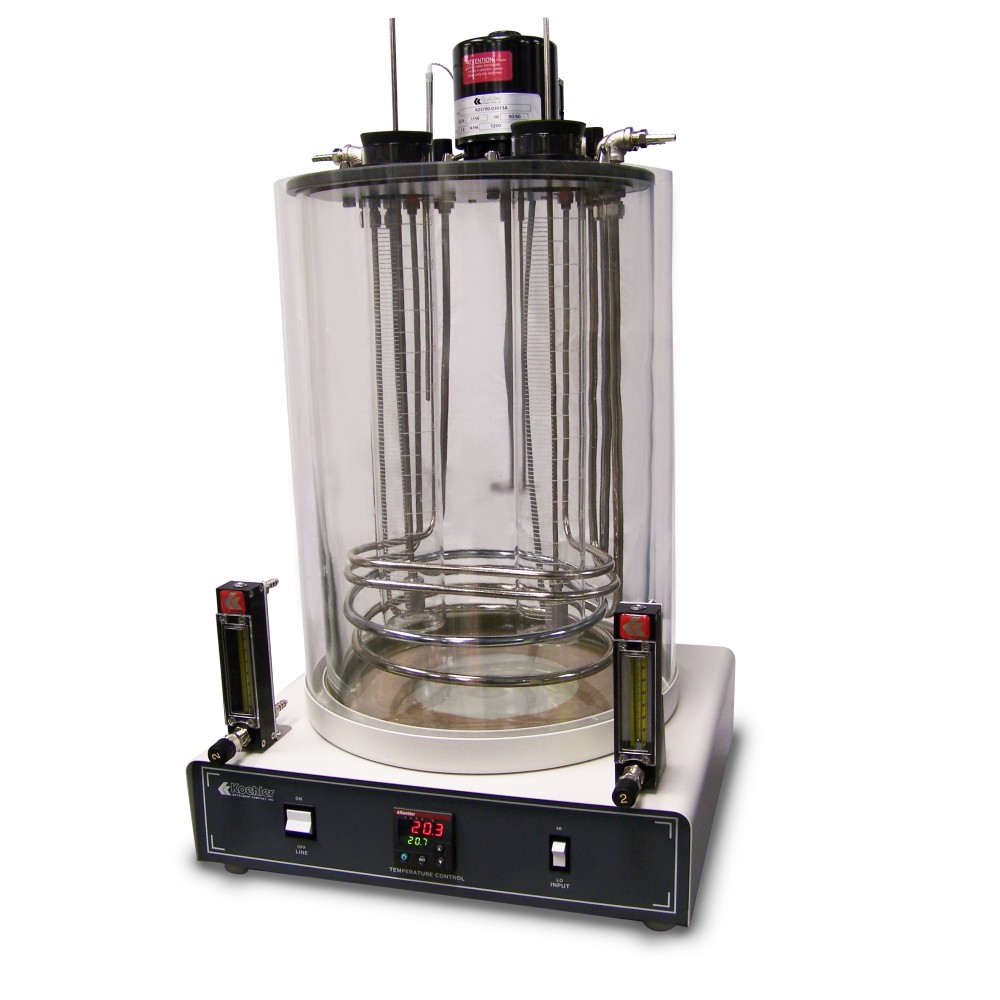

Koehler K43049 High Temperature ‘Sequence IV’ Liquid Foam Test Bath (150°C; 38.5L)

Foaming of lubricating oils in applications involving turbulence, high speed gearing or high volume pumping can cause inadequate lubrication, cavitation, overflow and premature oxidation.

Specifications

- Conforms to the specifications of: ASTM D6082

- Temperature control:

+ Digital setpoint and displays °C/°F switchable

+ Built-in overtemperature cut-off protection

- Bath temperature: 150°C (302°F)

- Air flow rate: 200mL/min

- Bath capacity: 9 gal (38.5L)

Dimensions

- lxwxh,in.(cm): 16 3⁄4x15x31 1⁄4 (42.5x38x79.4)

- Net weight: 62 lbs (28.1kg)

Shipping information

- Shipping weight: 95 lbs (43.1kg)

- Dimensions: 28x24x44 in. (71.1x61.0x111.8cm)

Included accessories

- Test cylinders, 1000mL (2)

- Bath jar (1)

- Diffuser stones, calibrated and certified (2)

- Support rack (1)

- Air delivery tube assemblies (2)

- Rubber stoppers (2)

- Acrylic safety shield, 18"
