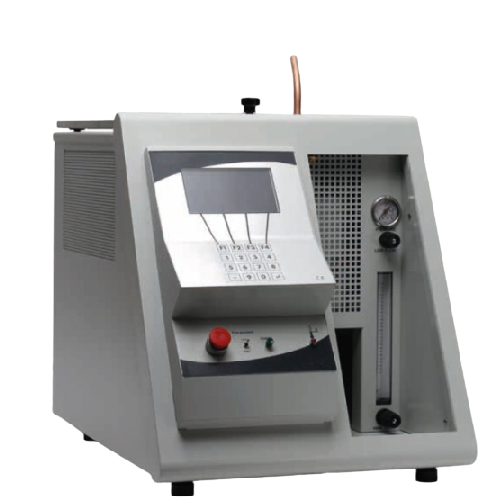

Koehler K41091 Micro Carbon Residue and Ash Tester (800°C)

Determines the amount of carbon residue formed after evaporation and pyrolysis of petroleum materials under certain conditions and is intended to provide some indication of the relative coke forming tendency of such materials.

Specifications

- Conforms to the specifications of: ASTM D4530, D189; IP 398; ISO 10370, ISO 6615; DIN 51551

Electrical requirements: 230V 50-60Hz

Dimensions

- LxWxH,in.(cm): 24.8x16.9x18.9 (63x43x48)

- Net weight: 115 lbs (52.2kg)

Shipping information

- Shipping weight: 150 lbs (68.0kg)

- Dimensions: 36x23x27 in. (91.5x58.4x68.6cm)

Included accessories

- 3 Vial Holders: Large, Small, and Mixed

- Cleaning Cable

- Hook for Safe Hot Lid Manipulation

- Pipes for Gas Connection

- Operator Software and Serial Connection

- Extension Pipe for Exhaust Chimney

- Ticket Printer

Additional accessories

- K41000-7 Gas Connection Kit - One Gas Output

- K41000-9 Holder for 25-50-100 g Porcelain Crucibles

- K41000-1 Pack of 6 Porcelain Crucibles, 120ml, Tall Form

- K41000-10 Pack of 6 Porcelain Crucibles, 40ml, Tall Form

- K41000-11 Pack of 6 Porcelain Crucibles, 80ml, Low Form

Manual
