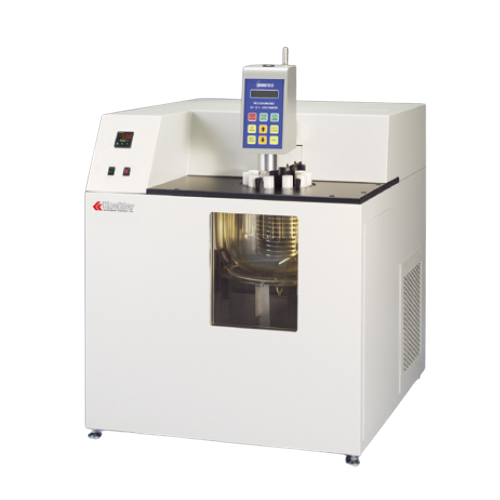

Koehler BVS5000 Programmable Brookfield Viscosity Liquid Bath System (10 samples, +10°C ~ -55°C)

Determines the low temperature, low shear rate viscosities of gear oils, automatic transmission fluids, hydraulic oils and other lubricants.

Specifications

Conforms to the specifications of: ASTM D2983 - Note 2 and Note 10; IP 267 Method B; ISO 9262; CEC-L-18A-30

Sample capacity: 10 samples

Temperature range: +10°C to -55°C

Temperature control: Microprocessor PID digital indicating programmable controller with ±0.05°C steady state stability

Electrical requirements: 220-240V 50Hz, Single Phase, 12.6A

Dimensions LxWxH,in.(cm): 41x34x38 (104x86.5x96.5)

Net weight: 327lbs (148.5kg)

Shipping Information

Shipping weight: 468 lbs (213 kg)

Dimensions: 45x38x58 in. (115x97x148cm)
