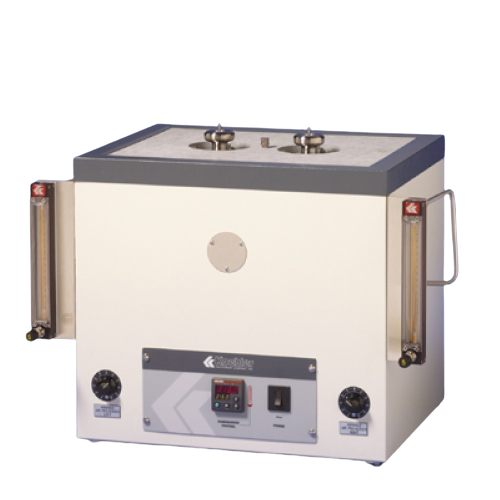

Koehler K29300 High Temperature Evaporation Loss Tester (93-316°C)

For determination of evaporation loss of lubrication grease at temperatures from 93-316° C.

Specifications

- Conforms to the specifications of:

ASTM D2595, D2878* *with accessory oil sample cup installed

- Capacity: 2 samples

- Temperature range: 200 to 600°F (93 to 316°C)

- Sample temperature control: Type: microprocessor digital control

- Exit air temperature control: Two 0-500W variable control heaters and type K thermocouples (order K29320/K29329 Digital Thermometer separately)

- Air flow control: Two externally mounted flowmeters maintaining 2L/min flow at standard temperature and pressure

Electrical requirements: 220-240V 50/60Hz, Single Phase, 10.4A

Dimensions

- lxwxh,in.(cm): 25x16x17 (64x41x43)

- Net weight: 175 lbs (79.4kg)

Shipping information

- Shipping Weight: 277 lbs (125.6kg)

- Dimensions: 31x26x38 in. (78.7x66.0x96.5cm)

Included accessories

- Evaporation Cell Assemblies with grease sample cups (2)

- Type K Thermocouples (2)

Additional accessories

- K29320 High Precision Digital Thermometer, 115V 60Hz

- K29329 High Precision Digital Thermometer, 220-240V 50/60Hz

- 250-000-03F ASTM 3F Thermometer - Range: 20 to 760°F

- 250-000-03C ASTM 3C Thermometer - Range: –5 to +400°C

- K29530 Oil Sample Cup with Hood

- K29540 Grease Sample Cup with Hood
