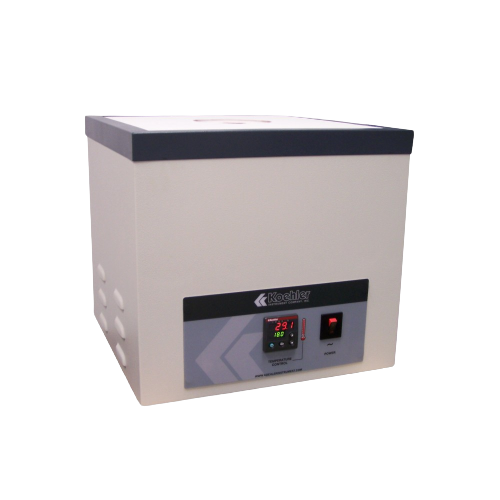

Koehler K27190 Ramsbottom Carbon Residue Apparatus (5 coking bulbs)

Determines the ‘carbon residue’ left after evaporation and pyrolysis of a sample oil in the Ramsbottom furnace, providing an indication of the deposit forming tendencies of fuels and guidelines for the processing of refinery products.

Specifications

- Conforms to the specifications of: ASTM D524, D6074; IP 14; ISO 4262; FTM 791-5002; NF T 60-117

- Furnace type: Cast iron block

- Capacity: 5 coking bulbs

- Maximum temperature: 650°C (1200°F)

- Controller sensitivity: ±1°C (± 2°F)

- Heater: 0-2400W, ceramic band heater

Electrical requirements: 220-240V 50/60Hz, Single Phase, 10.9A

Dimensions

- lxwxh,in.(cm): 16x21 1⁄2x14 1⁄2 (41x55x37)

- Net weight: 64 lbs (29kg)

Shipping information

- Shipping weight: 78 lbs (35.4 kg)

- Dimensions: 28x24x20 in. (71.1x61.0x50.8cm)
