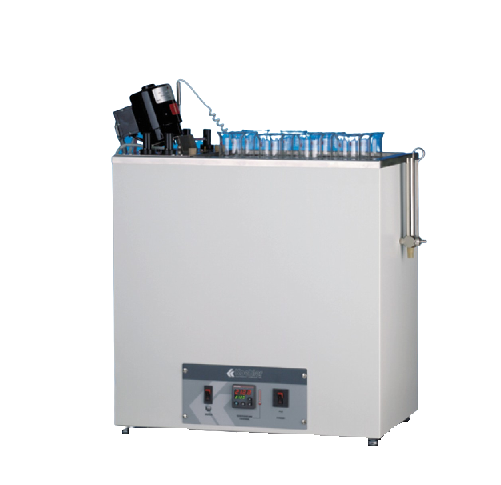

Koehler K26490 Constant Temperature Hydrometer Bath (71.9L)

For density, relative density (specific gravity) or API gravity determination of crude petroleum, liquid petroleum products and mixtures of petroleum and non-petroleum products.

Specifications

Capacity: twelve (12) hydrometer cylinders (without base) or Reid Vapor Pressure one-opening type pressure vessels

Temperature range: ambient to 250°F (121°C)

Temperature control stability: ±0.2°F (±0.17°C)

Heater range: 0-2500W

Bath medium: 19 gal (71.9L) water

Electrical requirements: 230V 50/60Hz, Single Phase, 11A

Dimensions lxwxh,in.(cm): 30x14x28 (76x36x71)

Net weight: 64 Lbs (29.0kg)

Shipping information

Shipping weight: 170 lbs (77.1kg)

Dimensions: 36x21x39 in. (91.4x53.3x99.1cm)

Additional accessories

K26410 Hydrometer Cylinder

Borosilicate glass, 151⁄2"lx2"dia. with 21⁄2" lip

250-000-61F ASTM 61F Thermometer - Range: 90 to 260°F

250-000-61C ASTM 61C Thermometer - Range: 32 to 127°C
