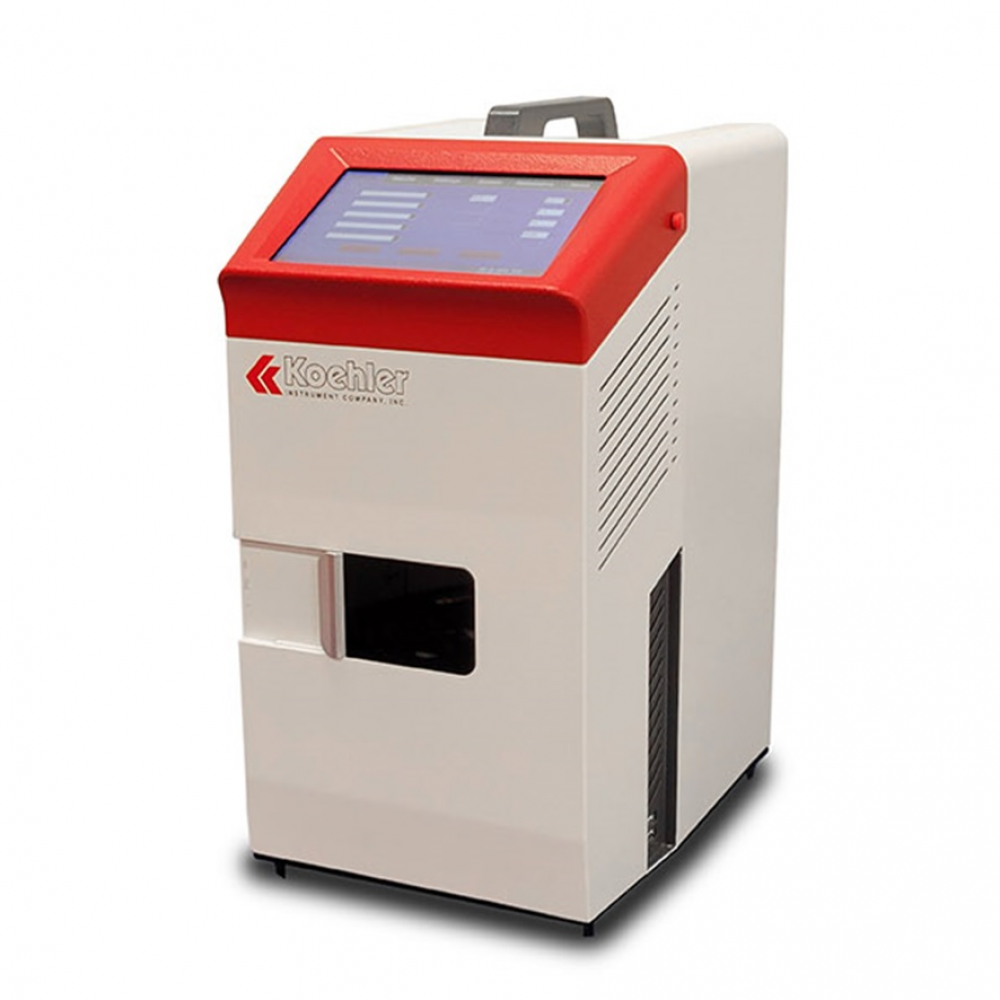

Koehler K24880 Automatic Microscale Continuously Closed Cup Flash Point Analyzer (-30°C ~ 405°C)

Conforms to the specifications of: ASTM D6450 and D7094

Excellent Correlation to: ASTM D56, D93, D3278, D3828; IP 170; EN ISO 6379 / 3680; ISO 2719; SH/T 0768, SH/T 3077.1, SH/T 3077.2, DL/T 1354, GB/T 261, GB/T 21615, GB/T 5208, GB/T 21790

Temperature Range: -30 °C to 405°C (-22 °F to 788 °F); below 0 °C an external cryogenic recirculatory is required

Heating Rate: 2.5 °C/min ± 0.3 °C/min or 5.5 °C/min ± 0.5 °C/min; can be customized in the range of 0.5 to 12 C/min

Temperature Accuracy: ± 0.1 °C

Pressure Range: 0 kPa to 200 kPa

Sample Volume: 1 mL or 2 mL

Ignition method: High voltage electric ignition

Stirring Rate: Can be customized from 50 RPM to 300 RPM

Interfaces: RS232, USB, Ethernet

Electrical requirements: 100-240V 50/60Hz, 300 W

Dimension W x D x H, in.(cm): 8.9 x 12.2 x 16.3 (22.5 x 31 x 41.5)

Net Weight: 26.5 lbs (12kg)
