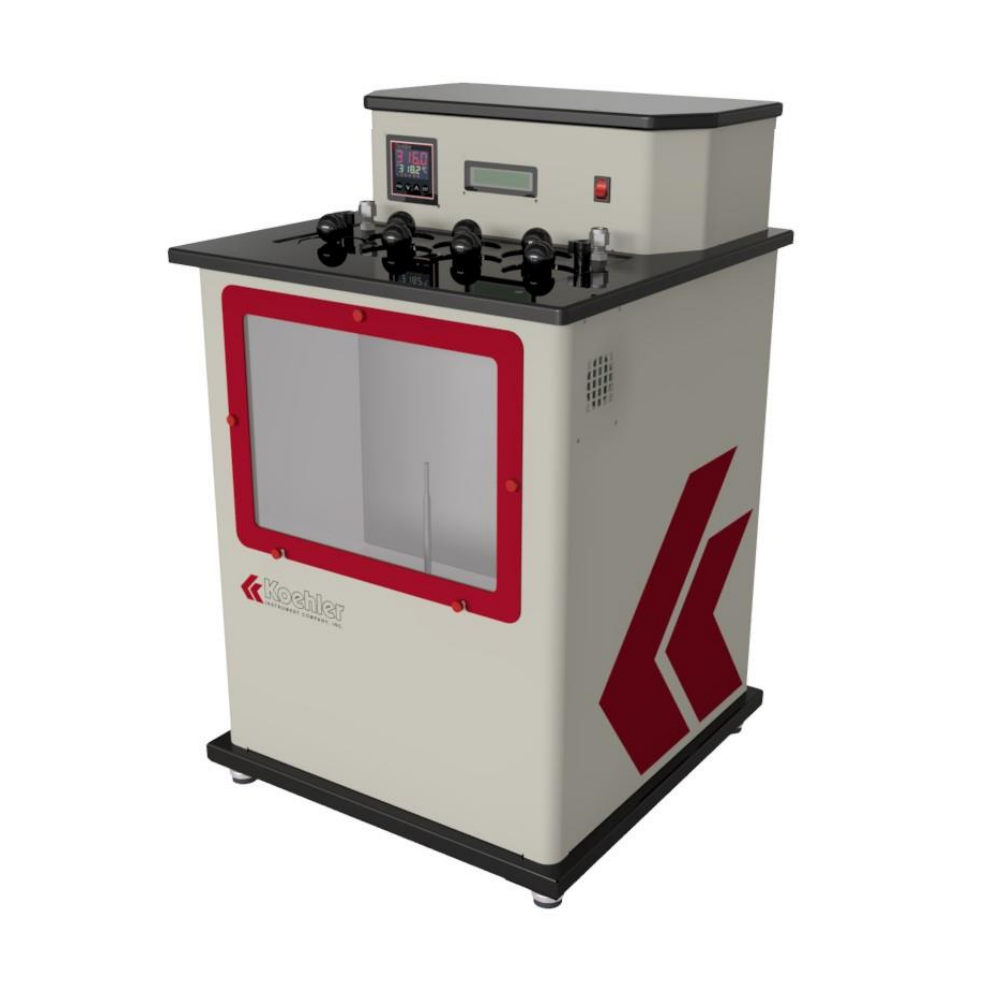

Koehler K23900 Kinematic Viscosity Bath (20°C-100°C)

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.

Specifications:

Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Temperature control range: 20°C to 100°C (212°F)

Temperature display resolution: 0.01°C

Temperature display accuracy: ±0.01°C

Bath temperature stability: ±0.02°C

Bath temperature uniformity: ±0.02°C

Thermometer ports: 2

Connectivity: USB

Drain valve: 1/2" female NPT fitting (back of unit)

Viscometer ports: Seven round 2" (51 mm) ports

Bath medium: 10 cSt Silicone Oil

Electrical requirements : 115V-240V 50/60Hz, Single Phase, 12A Max

Dimensions: WxDxH, in. (cm): 15.4x17.2x24.4 (39.12x43.69x61.68)

Net weight: 72 lbs (32.66kg)
