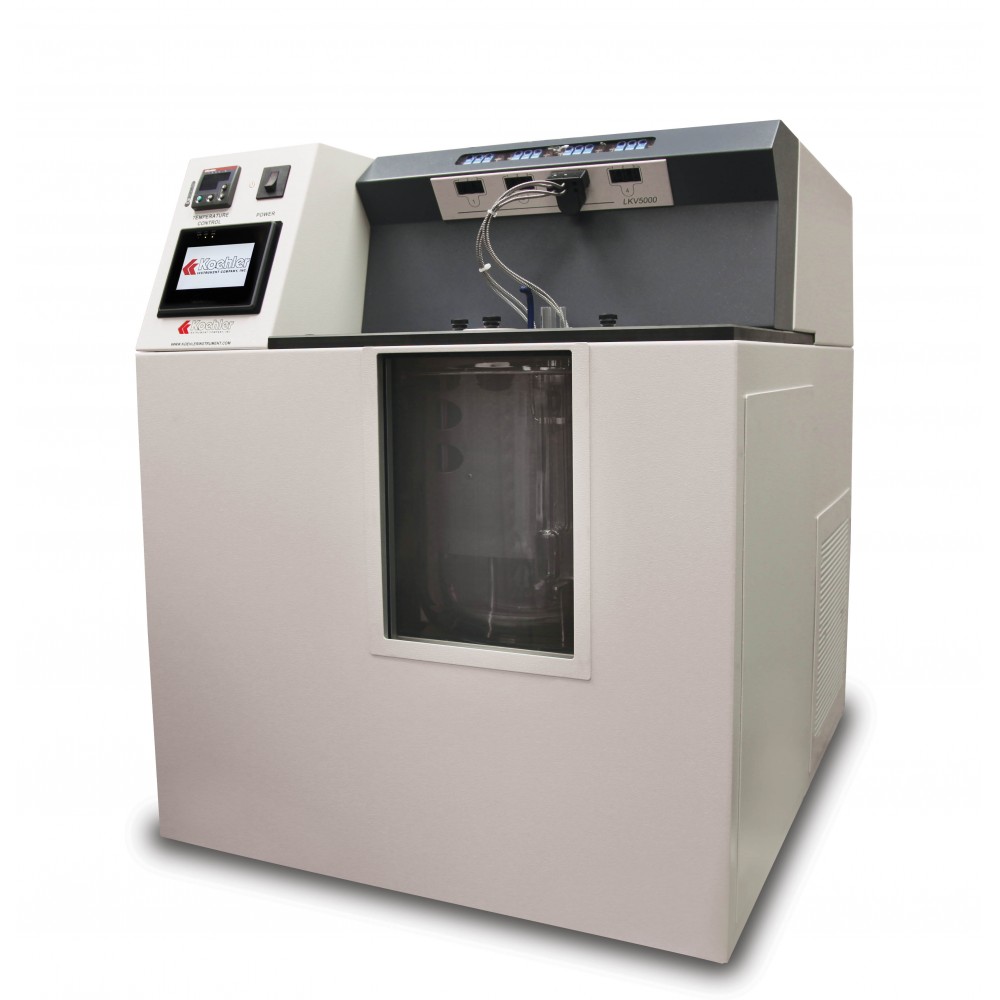

Koehler LKV5000 Refrigerated Kinematic Viscosity Bath with Optical Flow Detection System (14L, 15°C ~ -30°C)

Koehler LKV5000 series kinematic viscosity baths with optical flow detection system provides automatic viscosity measurements of petroleum and petrochemical products

Specifications:

Conforms to the specifications of: ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Testing capacity: Four (4) glass capillary viscometers

Viscometer ports: Four (4) round 2" (51 mm) ports

Bath dimensions: 9 ½" dia. x 12" depth (24 cm dia. x 30 cm)

Bath capacity: 3.7gal (14L)

Temperature range: 15°C to -30°C (59°F to -22°F)

Temperature Control Display: 0.1°C/0.1°F resolution, calibrate to 0.01°C/0.01°F

Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range

Electrical requirements: 220-240V 50Hz, Single Phase, 14.5A

Dimensions:

- LxWxH,in.(cm): 42x35x36 (107x89x91)

- Net weight: 176 lbs (79.83kg)

Shipping Information

- Shipping weight: 410 lbs (185.9kg)

- Dimensions: 41x35x38 in. (114.14x88.9x96.52 cm)
