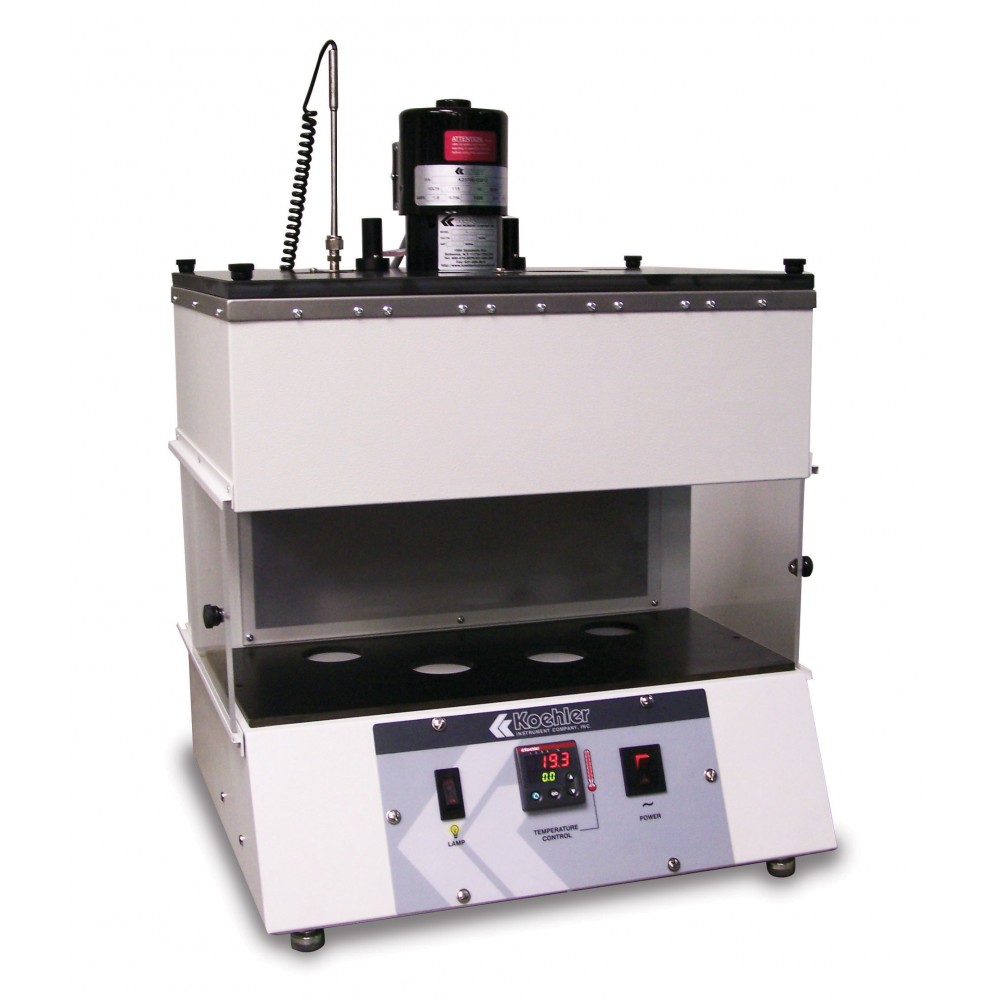

Koehler SV3000 Saybolt Viscosity Bath (19L, 240°C)

Determines the time required for 60mL of sample to flow through a calibrated orifice under precisely controlled conditions.

Specifications

Conforms to the specifications of: ASTM D88, D244, E102, AASHTO T72; FTM 791-304

Capacity: 4 viscometer tubes

Temperature range: ambient to 464°F (240°C)

Temperature stability: ±0.05°F (±0.03°C)

Bath capacity: 5 gal (19L)

Recommended bath medium: water or suitable heat transfer fluid

Electrical requirements: 220-240V 50/60Hz, Single Phase, 6.4A

Dimensions

- LxWxH,in.(cm): 29x25x33 (74x63.5x84)

- Net weight: 65 lbs (29.5kg)

Shipping Information

- Shipping weight: 94 lbs (42.7kg)

- Dimensions: 28x24x33 in. (72x61x84cm)
