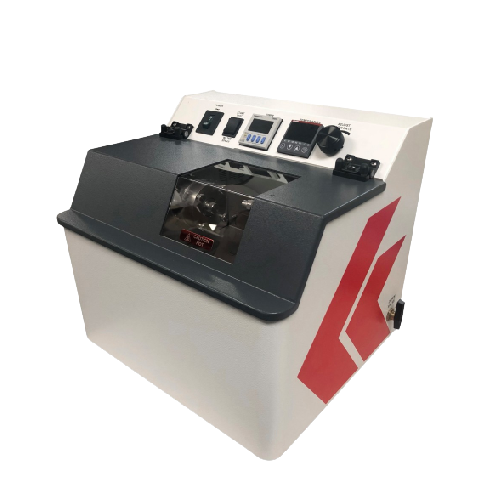

Koehler K19295 Water Washout Tester (1⁄3hp 1725rpm, 220-240V 50Hz)

A grease sample is packed in a ball bearing and subjected to a steady water stream under controlled test conditions. The percentage of grease washed out in a one hour period is determined by weight.

Specifications

- Conforms to the specifications of: ASTM D1264, D4950; IP 215; FTM 791-3252

- Drive motor: 1⁄3hp 1725rpm

- Temperature control: ±1°F (±0.5°C) sensitivity

Electrical requirements: 220-240V 50Hz, một pha, 5.1A

Dimensions

- lxwxh,in.(cm): 18x12x183⁄4 (46x3Ox48)

- Net weight: 65 lbs (29.5kg)

Shipping Information

- Shipping weight: 135 lbs (61.2kg)

- Dimensions: 26x20x28 in. (66.0x50.8x71.1cm)

Included accessories

- Graduated Cylinder, 50 mL

- Test Bearing

Additional accessories

- 289-001-006 Test Bearing

- K19201-RPM-CAL-KIT Motor Speed Calibration Kit

- K19201-T-CAL-KIT Temperature Calibration Kit

- 250-000-15F ASTM 15F Thermometer, Range: 30 to 180°F

- 250-000-15C ASTM 15C Thermometer, Range: –2 to +80°C
