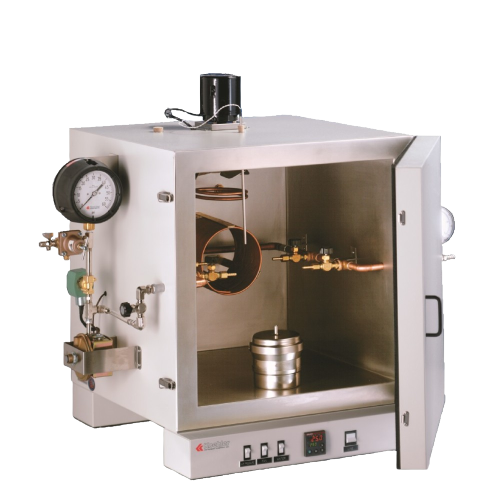

Koehler K18919 Constant Temperature Air Cabinet (4 samples)

Determines the tendency of lubricating grease to separate oil during storage in a 35 lb pail.

Specifications

- Conforms to the specifications of: ASTM D1742, FTM 791-322

- Capacity: four samples

- Controller Sensitivity: ±1°F (±0.5°C)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 1.5A

Dimensions:

- lxwxh,in.(cm) Interior: 19 3⁄4x19 3⁄4x21 1⁄2 (50x50x55)

Overall: 47*x23 3⁄4x31 1⁄4 (119x60x79) *includes external pressure system components

- Net weight: 150 lbs (68kg)

Shipping information

- Shipping weight: 267lbs (121.1kg)

- Dimensions: 43x34x39 in. (109.2x86.4x99.1cm)

Additional accessories

- K18900 Pressure Bleeding Test Cell

- 332-002-009 Test Beaker, 20mL

- 250-000-57F ASTM 57F Thermometer. Range: –4 to +122°F

- 250-000-57C ASTM 57C Thermometer. Range: –20 to +50°C
