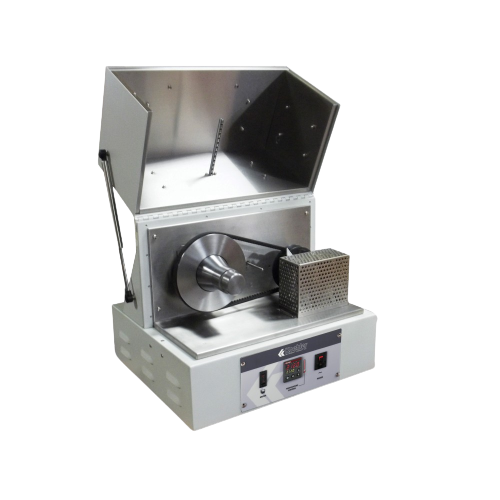

Koehler K18795 Leakage Tendencies Tester (121°C)

Evaluates the tendency of automotive wheel bearing grease to separate oil and/or grease under prescribed laboratory conditions.

Specifications

- Conforms to the specifications of: ASTM D1263; FTM 791-3454

- Maximum temperature: 250°F (121°C)

Electrical requirements: 220-240V 50Hz, Single Phase, 7A

Dimensions

- lxwxh,in.(cm): 201⁄2x18x15 (52x46x38)

- Net weight: 95 lbs (43.1kg)

Shipping information

- Shipping weight: 212 lbs (96.2kg)

- Dimensions: 28x28x25 in. (71.1x71.1x63.5cm)

Included accessories

- Large (Inner) Bearing (1)

- Small (Outer) Bearing (1)

Additional accessories

- K18723 Torque Wrench

- 250-000-07F ASTM 7F Thermometer - Range: 30 to +580°F

- 250-000-07C ASTM 7C Thermometer - Range: –2 to +300°C

- 289-004-004 Large (Inner) Bearing

- 289-004-003 Small (Outer) Bearing
