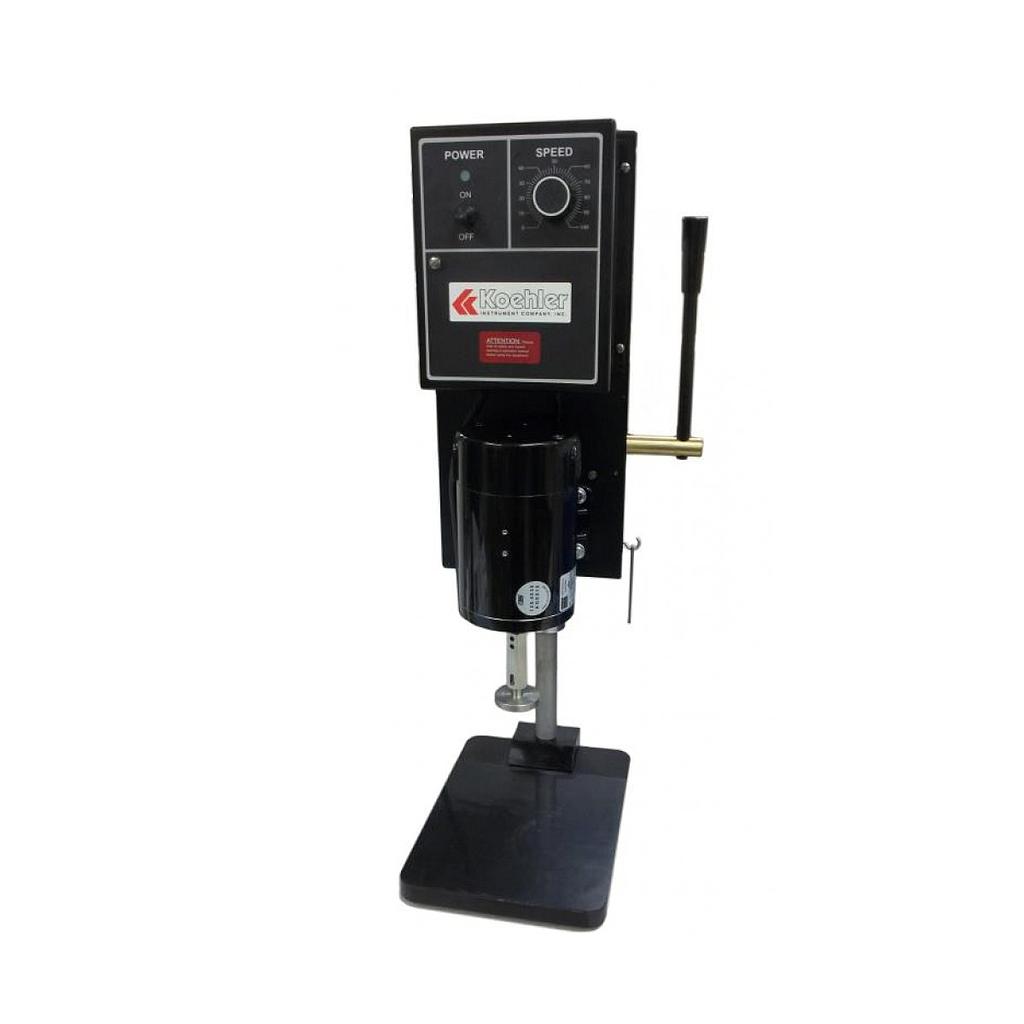

Koehler K17989 Corrosion Preventive Properties Apparatus (1750rpm)

Determines the corrosion preventive properties of greases when distributed in a tapered roller bearing stored under wet conditions.

Specifications

- Conforms to the specifications of: ASTM D1743, D4950, Draft Method, D5969

- Drive motor: 1750rpm

Electrical requirements: 220-240V 50/60Hz. Single Phase, 1.0A

Dimensions

- lxwxh,in.(cm): 10x15x20 (25.4x38.1x50.8)

- Net weight: 36 lbs (16.3kg)

Shipping information

- Shipping weight: 49 lbs (22.2kg)

- Dimensions: 28x24x20 in (71.2x61.0x50.8cm)

Included accessories

- Bearing Holder Assemblies (3): Consisting of: 1kg weight upper and lower plastic collars for cone plastic collar for cup plastic jar with screw cap metal screw

- Spindle/Thrust Loading Device

- Mechanical Grease Packer

- Pliers

- Test Bearings (3) (cone and roller assemblies)

Additional accessories

- K17981 Bearing Holder Assembly

- K17981-0-2 Upper Flange

- K17981-0-3 Lower Flange

- K17982 Mechanical Grease Packer

- K17983 Pliers

- K17984 Plastic Jar

- 289-004-002 Test Bearing
