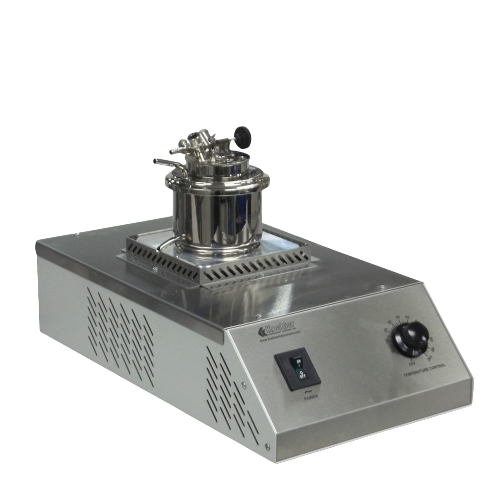

Koehler K14671 Tag Closed Cup Flash Tester (220-240VAC, 50/60Hz)

For flash point determinations of liquids with a viscosity of below 5.5 centistokes (cSt) at 104°F (40°C) or below 9.5cSt at 77°F (25°C), and a flash point below 200°F (93°C) except cut-back asphalts, those liquids which tend to form a surface film under test conditions and materials which contain suspended solids.

Specifications

- Conforms to the Specifications of: ASTM D56; IP 304; FTM 791-1101

Electrical requirements: 220-240VAC, 50/60Hz 0.6A

Dimensions

- wxdxh in.(cm): 10x17.5x11.5 (25.4x44.5x29.2)

- Net weight: 14 lbs (6.4kg)

Shipping information

- Shipping weight: 18 lbs (8.2kg)

- Dimensions: 20x16x16in (50.8x40.6x40.6cm)

Included accessories

- Brass Test Cup

- Cover Assembly

Additional accessories

- 250-000-09F ASTM 9F Thermometer Range: 20 to 230°F

- 250-000-09C ASTM 9C Thermometer Range: -5 to +110°C

- 250-000-57F ASTM 57F Thermometer Range: -4 to 122°F

- 250-000-57C ASTM 57C Thermometer Range: -20 to +50°C

- K14510 Cover Assembly K14520 Brass Test Cup

Datasheet

Manual
