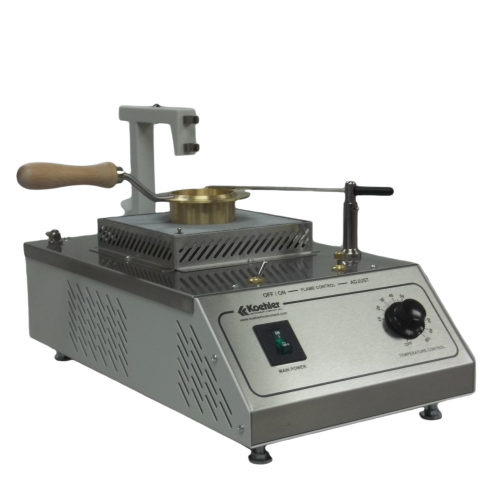

Koehler K13992 Cleveland Open Cup Flash Point Tester (>79°C)

For flash and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C (175°F).

Specifications

- Conforms to the specifications of: ASTM D92; D6074, D6158; AASHTO T48; ANS Z- 11.6; IP 36; ISO 2592; DIN 51376; FTM 791-1103, FTM 141-4294

Electrical requirements: 220-240V 50/60Hz, Single Phase, 3.4A

Dimensions

- wxdxh in.(cm): 10x17.5x11.5 (25.4x44.5x29.2)

- Net weight: 17 lbs (7.7kg)

Shipping information

- Shipping weight: 21 lbs (9.5kg)

- Dimensions: 20x16x16in (50.8x40.6x40.6cm)

Included accessories

- Brass Test Cup

Additional accessories

- 250-000-11F ASTM 11F Thermometer Range: 20 to 760°F

- 250-000-11C ASTM 11C Thermometer Range: -6 to +400°C

- K14000 Cleveland Open Flash Cup Precision machined brass with heat resistant handle
