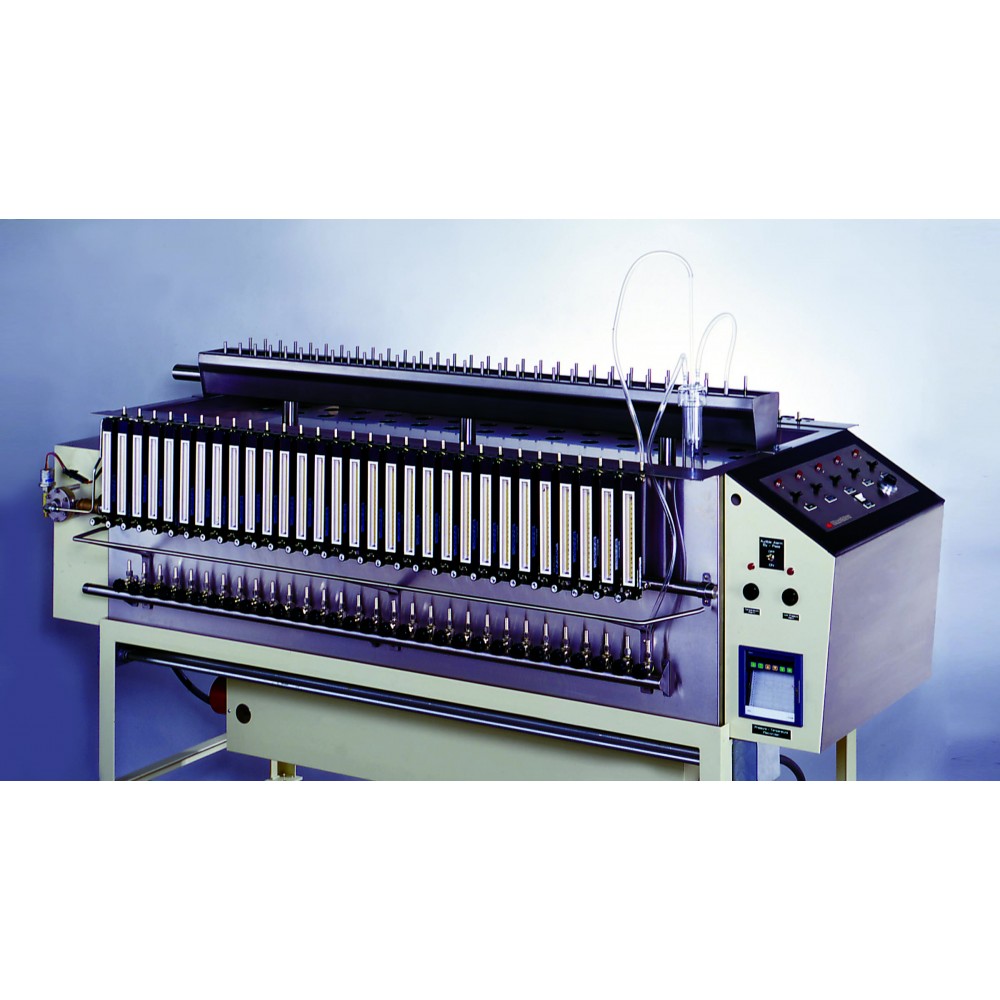

Koehler K12395 Oxidation Stability Apparatus (60-Place)

Evaluates oxidation stability by subjecting the sample to a temperature of 95°C in the presence of oxygen or dry air.

Specifications

- Conforms to the specifications of: ASTM D943, D2274, D2893*, D4310, D6158; ISO 4263, 12205 AOCS CD12-57*; DIN 51586, DIN 51587; NF M 07-047; NF T 60-150

- Temperature control stability: ±0.1°C (±0.2°F)

- Oxygen flow rate: 3L/h to each test cell, individually controlled

- Bath capacity: 114 gal (432L)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 54A

Dimensions

- lxwxh,in.(cm): 43x78x52 (109x198x132)

- Net weight: 851 lbs (386kg)

Shipping information

- Shipping weight: 1465 lbs (664.5kg)

- Dimensions: 99x53x73in (251.5x134.6x185.4cm)

Datasheet
