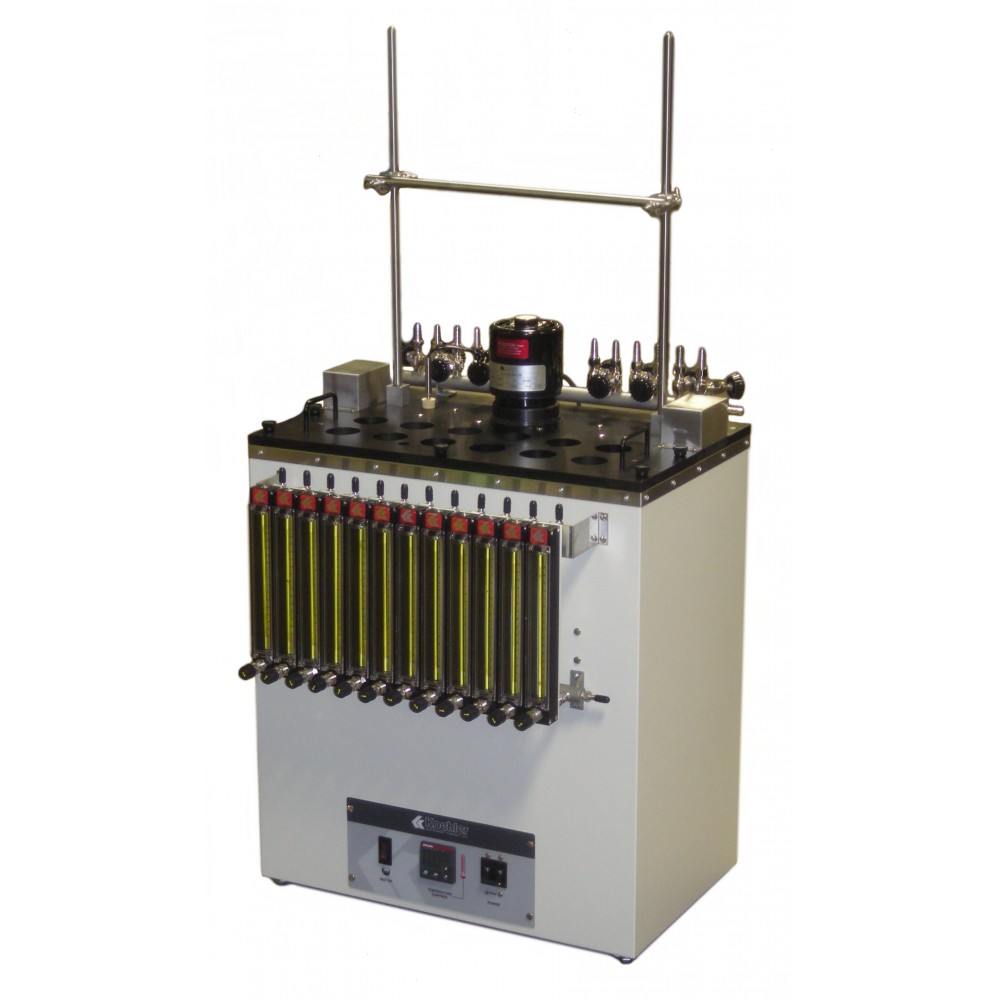

Koehler K12239 High Temperature Convertible Oxidation Bath (12 sets of glassware)

High temperature liquid bath for oxidation stability and corrosiveness tests at temperatures of up to 200°C.

Specifications

- Conforms to the specifications of:

ASTM D943, D2274, D2440, D2893, D4310, D4636, D4871, D5968, D6594; DIN 51394, 51586, 51587; FTM 791-5307, 791-5308

- Capacity: Twelve (12) sets of glassware. For ASTM D5968, FTM 791-5307, and FTM 791-5308, only ten (10) sets of glassware.

- Temperature range: Ambient to 200°C

- Temperature control accuracy: 0.2°F (0.1°C)

- Bath medium: Silicone heat transfer fluid

- Flow rate: As specified for ASTM or applicable specifications

Electrical requirements: 220-240V 50/60Hz, Single Phase, 14.6A

Dimensions:

- Ixwxh,in.(cm): Bath (without glassware): 25 1⁄2x24x42 (65x61x107)

- Net weight: 108 lbs (49kg)

Shipping information:

- Shipping weight: 235 lbs (106.6kg)

- Dimensions: 32x28x41 in. (81.3x71.2x104.1cm)
