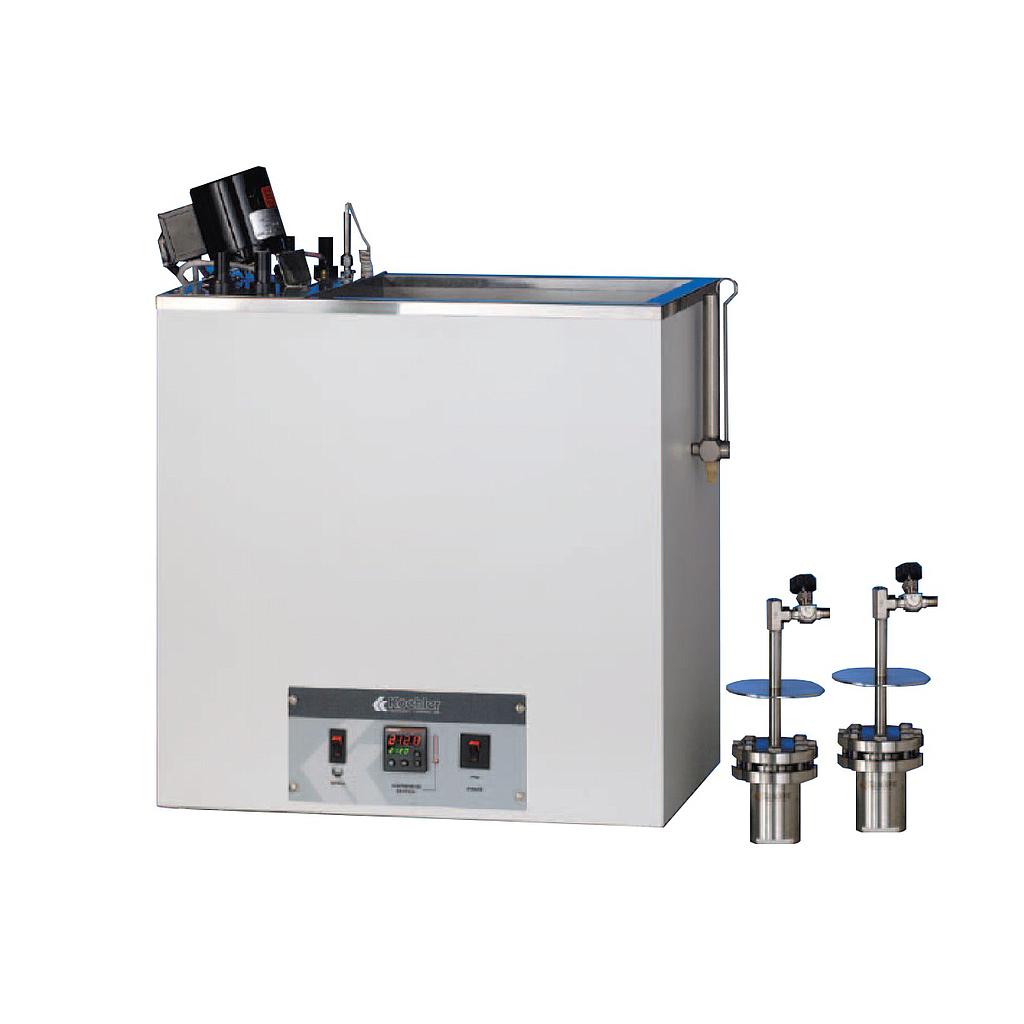

Koehler K10991 Oxidation Stability Test Apparatus for Lubricating Greases (47.3L)

Oxidation Bath–Constant temperature oil bath holds pressure vessels at the proper depth for determining oxidation stability of lubricating greases.

Specifications

- Conforms to the specifications of: ASTM D942; IP 142; DIN 51808; FTM 791-3453

- Oxidation bath: Capacity: four (4) oxidation pressure vessels

- Temperature range: ambient to 275°F (135°C)

- Bath Medium: 12.5 gal (47.3L) white technical oil

Electrical requirements: 220-240V 50/60Hz, Single Phase, 6.8A

Dimensions

- dia.xh,in.(cm): Interior: 16x14 (41x36)

Overall: 19 1⁄2x28 1⁄2 (50x72)

- Net weight: 75 lbs (34.1kg)

Shipping information

- Shipping weight: 166 lbs (75.3kg)

- Dimensions: 36x20x40 in. (91.5x50.8x101.6cm)
